Product Overview

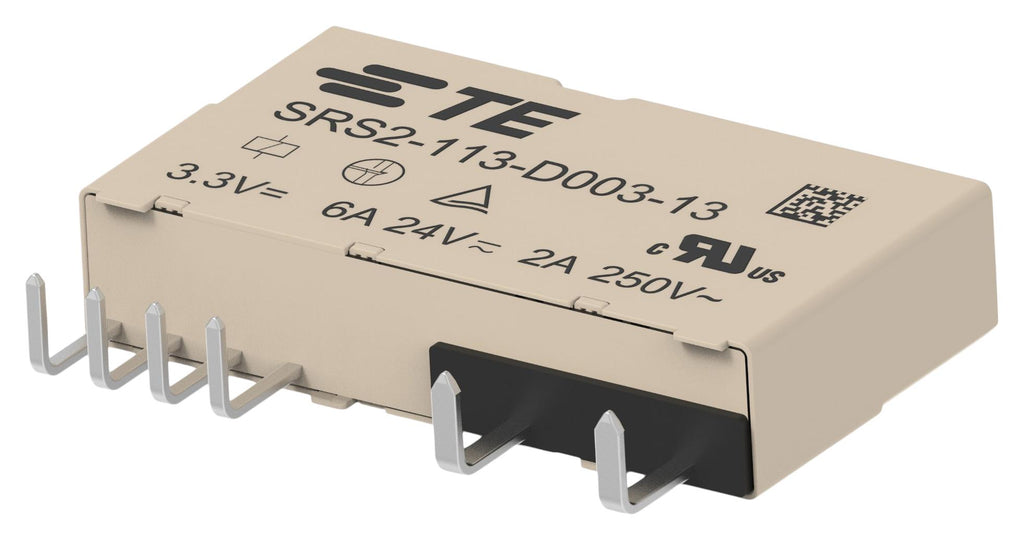

SRS2-113-D003-13 is a SRS2 force guided relay (IEC/EN61810-3 type A) for safety applications with limited space. The just 210mW coil power consumption helps allow a dense arrangement in hot environments. The NO contact can switch 2A/ 250V AC or 6A/ 24V AC/DC and is linked to a monitoring NC contact with a diagnostic coverage of 99% (IEC 61508-2). Applications include safety relay modules, safety controllers, programmable logic controllers (PLC’s), machines, presses, robots, emergency shut-off, light barriers, elevator and escalator safety control, railway level crossings and signalling.
- Slim 2 pole relay with force guided relay according to type A of IEC/EN 61810-3 (EN50205)
- 1 form A (NO) + 1 form B (NC) contacts
- 28 x 6 x 15.5mm small size
- Polarized magnet system with small coil power consumption (210mW)
- Reinforced insulation between NO and NC–circuit and between NO and relay coil
- Horizontal - pin bent inwards
Product details
| Coil Voltage |
3.3VDC |
| Product Range |
SRS2 Series |
| Contact Current |
6A |
| Contact Voltage AC Nom |
24V |
| Contact Material |
Silver Tin Oxide, Silver Copper Nickel Gold |
| SVHC |
No SVHC (21-Jan-2025) |
| Contact Configuration |
SPST-NO, SPST-NC |
| Relay Mounting |
Through Hole |
| Relay Terminals |
PC Pin, Right Angle |
| Contact Voltage DC Nom |
24V |
| IP Rating |
- |
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
SRS2-113-D003-13 |
| Quantity |
Each |
| Technical Data Sheet (1.47MB) EN |
View or download |
