Product Overview
PBT01F12S05-H3 is a PBT01F series, 1W, DC-DC converter. It is an ideal solution for isolating voltage rails in a distributed power supply architecture such as analogue, digital, data and relay circuits. The PBT01F offers high efficiency, ITE safety approvals, short circuit protection and a wide operating temperature range in a compact SMD8 DIP design, allowing easy integration into industrial, instrumentation and technology applications. Also suitable for robotics, instrumentation and process control applications.
- Input voltage range from 10.8 to 13.2V DC (12V DC nom)
- Single unregulated output voltage of 5V and 200mA output current
- 80% typ efficiency at nominal input voltage and full load
- 470µF maximum capacitive load
- UL62368-1 & IEC62368-1 safety approvals
- ±10% input range
- 3 year warranty
- Operating temperature range from -40°C to +105°C
- 3kV DC isolation
- Dimension is (single): 12.75 x 10.7 x 7.0mm (0.5" x 0.42" x 0.28")
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
200mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
6.7mm |
| Input Voltage DC Min |
10.8V |
| Product Range |
PBT01F Series |
| DC / DC Converter Type |
Surface Mount DIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
12V |
| Width |
10.7mm |
| Depth |
12.75mm |
| Input Voltage DC Max |
13.2V |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
XP POWER |
| Part Number |
PBT01F12S05-H3 |
| Quantity |
Each |
| Technical Data Sheet (1.01MB) EN |
View or download |

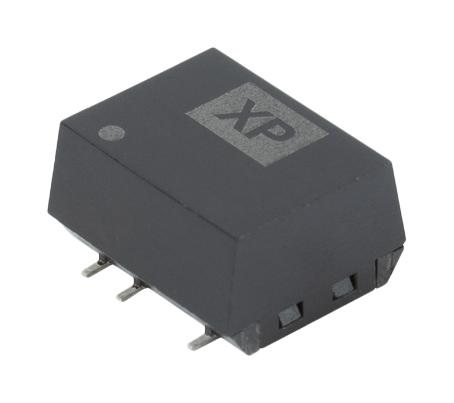

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
