Product Overview

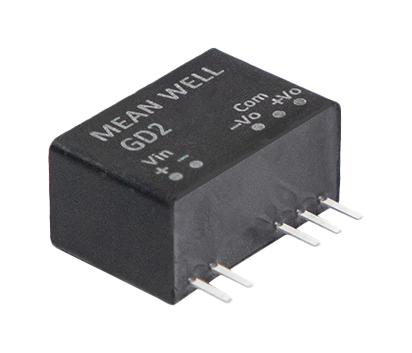

GD2-242005 is a GD2 series 2W isolated and unregulated module type DC- DC converter. Suitable for server telecom/datacom system, wireless network, industrial control facility, industrial robotics, motor drives, solar inverters and induction heating applications.
- Input voltage range from 21.6 to 26.4V DC
- 20V DC output positive voltage
- 5V DC output negative voltage
- SIP package with international standard pinout
- Performance optimized of IGBT/SIC
- Bipolar asymmetric unregulated output
- Low coupling isolated capacitance (Cio), low cost and 3 years warranty
- Protections: short circuit(continuous)
- 6.2kV DC or 4.3KV AC high I/O isolation
- Operating temperature range from -40 to 90°C
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
- |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
80mA |
| Output Current - Output 2 |
-80mA |
| Isolation Voltage |
6.2kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
12.5mm |
| Input Voltage DC Min |
21.6V |
| Product Range |
GD2 Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
2W |
| Output Voltage - Output 1 |
20V |
| Output Voltage - Output 2 |
-5V |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
24V |
| Width |
9.8mm |
| Depth |
19.5mm |
| Input Voltage DC Max |
26.4V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MEAN WELL |
| Part Number |
GD2-242005 |
| Quantity |
Each |
| Technical Data Sheet (201.23KB) EN |
View or download |
