Product Overview
PIC32AK3208GC41064-I/PT is a high-performance 32bit microcontroller from Microchip's PIC32AK family, built on a powerful MIPS-based core. It operates at speeds of up to 200MHz and features an integrated single and double-precision Floating-Point Unit (FPU), making it ideal for complex signal processing and control applications. The device offers up to 128kB of ECC-protected Flash memory and 16 KB of ECC RAM, along with a 6-channel DMA controller for efficient data handling. It supports a rich peripheral set including UART, SPI, I²C, SENT, QEI, and PWM modules.
- 32kbytes flash, 8kbytes RAM
- Dual 12bit ADCs up to 40Msps with 22 configurable analogue inputs
- Three 100MHz rail-to-rail op-amps and high-speed analogue comparators with DACs
- High-current I/Os with programmable pull-up/down, open-drain, and PPS remappable pins
- Edge/level interrupts on I/O with 5 external sources and programmable interrupt priorities
- Clocking options: 8MHz FRC/BFRC, crystal, dual 1.6GHz PLLs, REFO output
- Four PWM generators with 8 outputs, 2.5ns resolution, supporting various motor types
- Robust security: secure boot, debug, immutable root of trust, flash write protection
- Safety features: watchdog timers, fail-safe clock, ECC on flash/RAM, CRC, MBIST
- Available in 64 pin TQFP package, temperature range from -40°C to 85°C (industrial)
Product details
| Product Range |
PIC32 Family PIC32AK Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
32KB |
| IC Case / Package |
TQFP |
| Interfaces |
I2C, I2S, SPI, UART |
| ADC Channels |
22Channels |
| Supply Voltage Min |
3V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
PIC32AK |
| SVHC |
No SVHC (04-Feb-2026) |
| Device Core |
PIC32 |
| Operating Frequency Max |
200MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
49I/O's |
| RAM Memory Size |
8KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
85°C |
| MCU Family |
PIC32 |
| Qualification |
- |
Other details
| Brand |
MICROCHIP |
| Part Number |
PIC32AK3208GC41064-I/PT |
| Quantity |
Each |
| Technical Data Sheet (34.58MB) EN |
View or download |
| Product Change Notice (2.79MB) EN |
View or download |

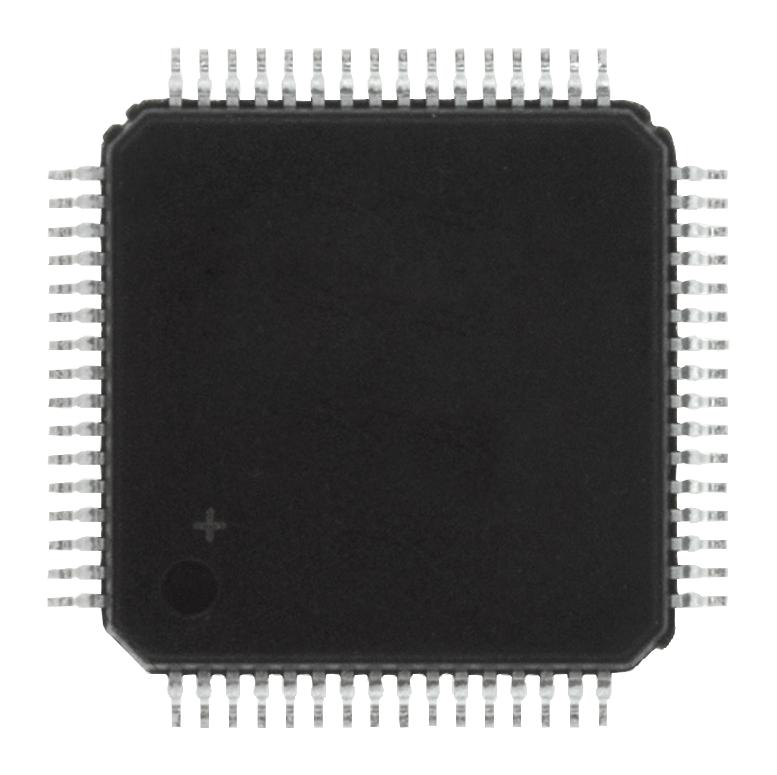

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
