Product Overview

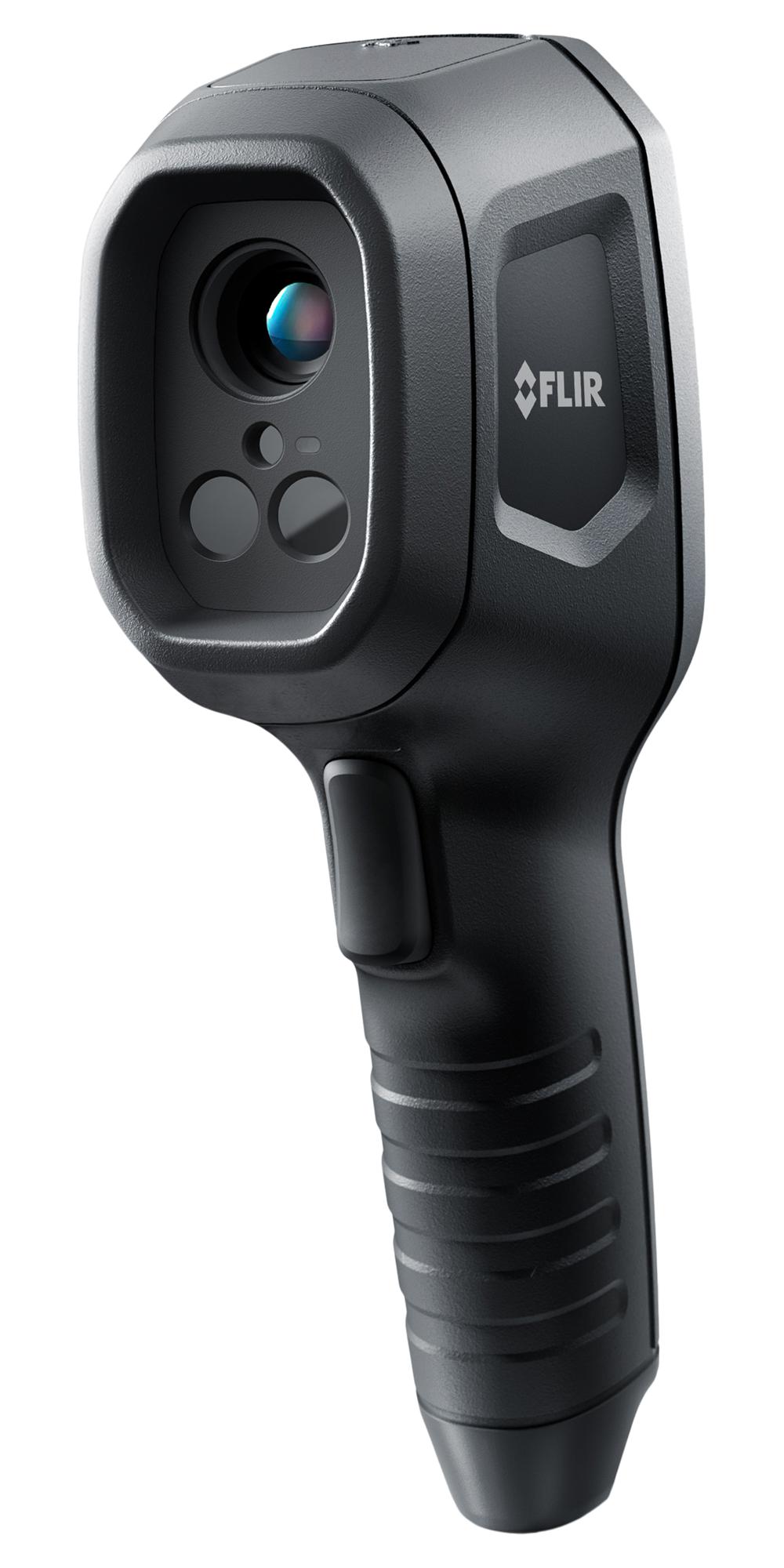

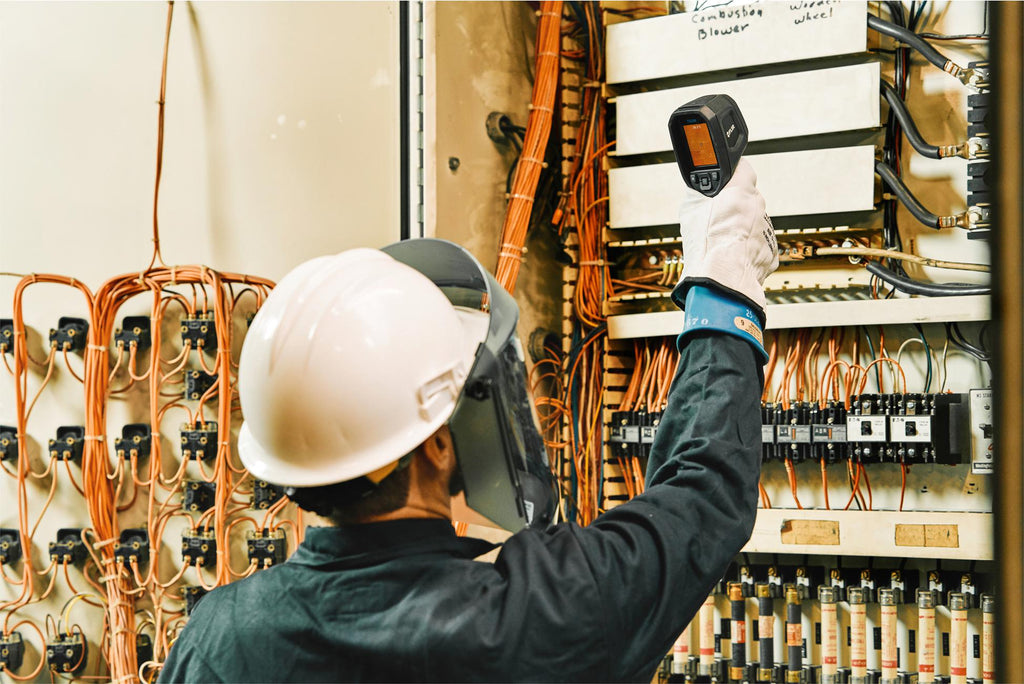

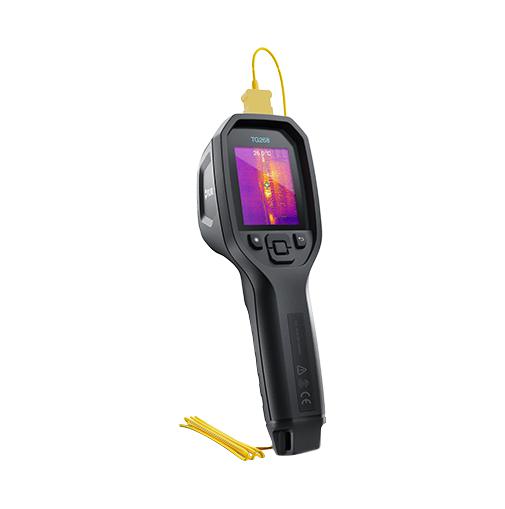

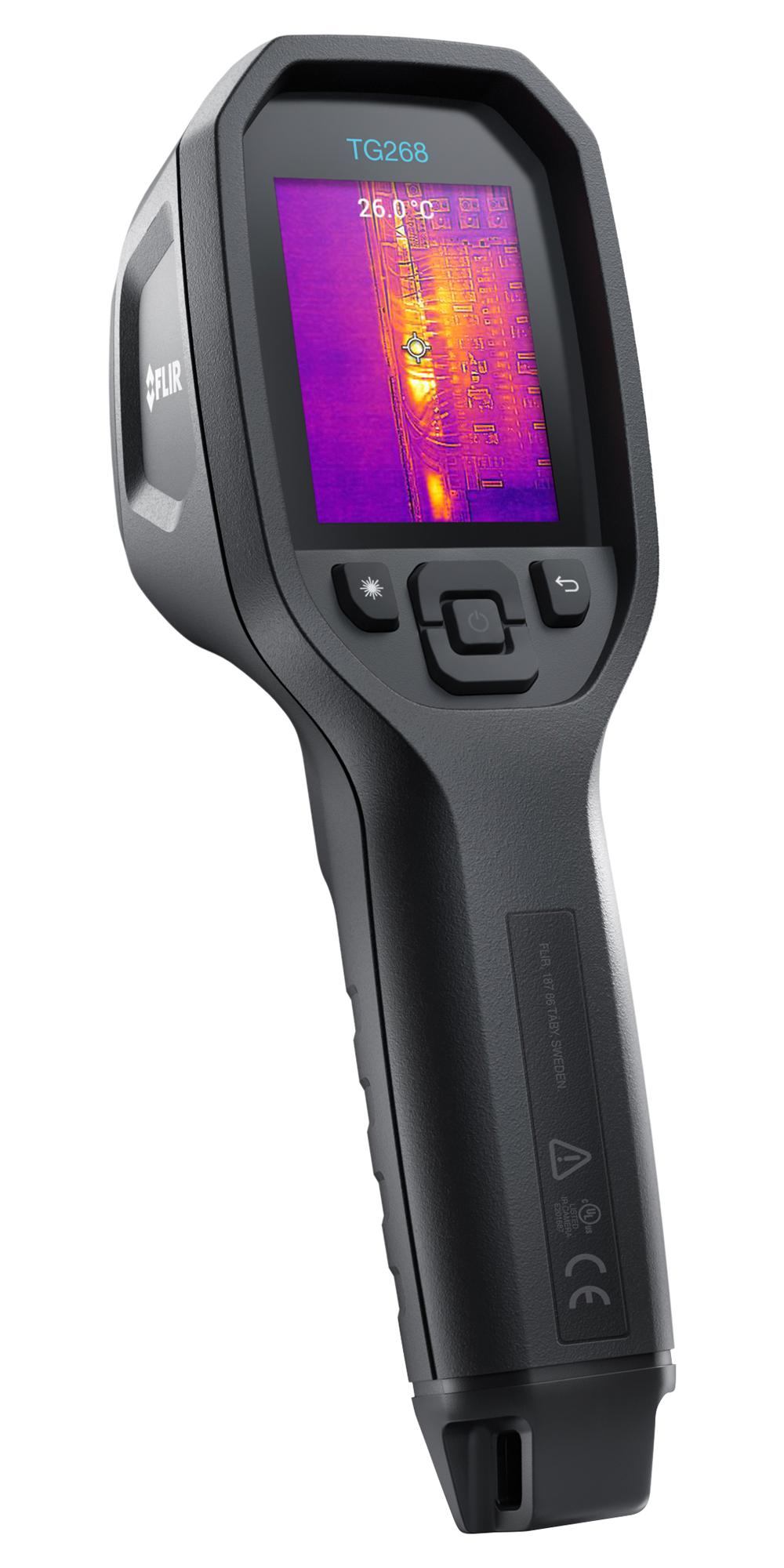

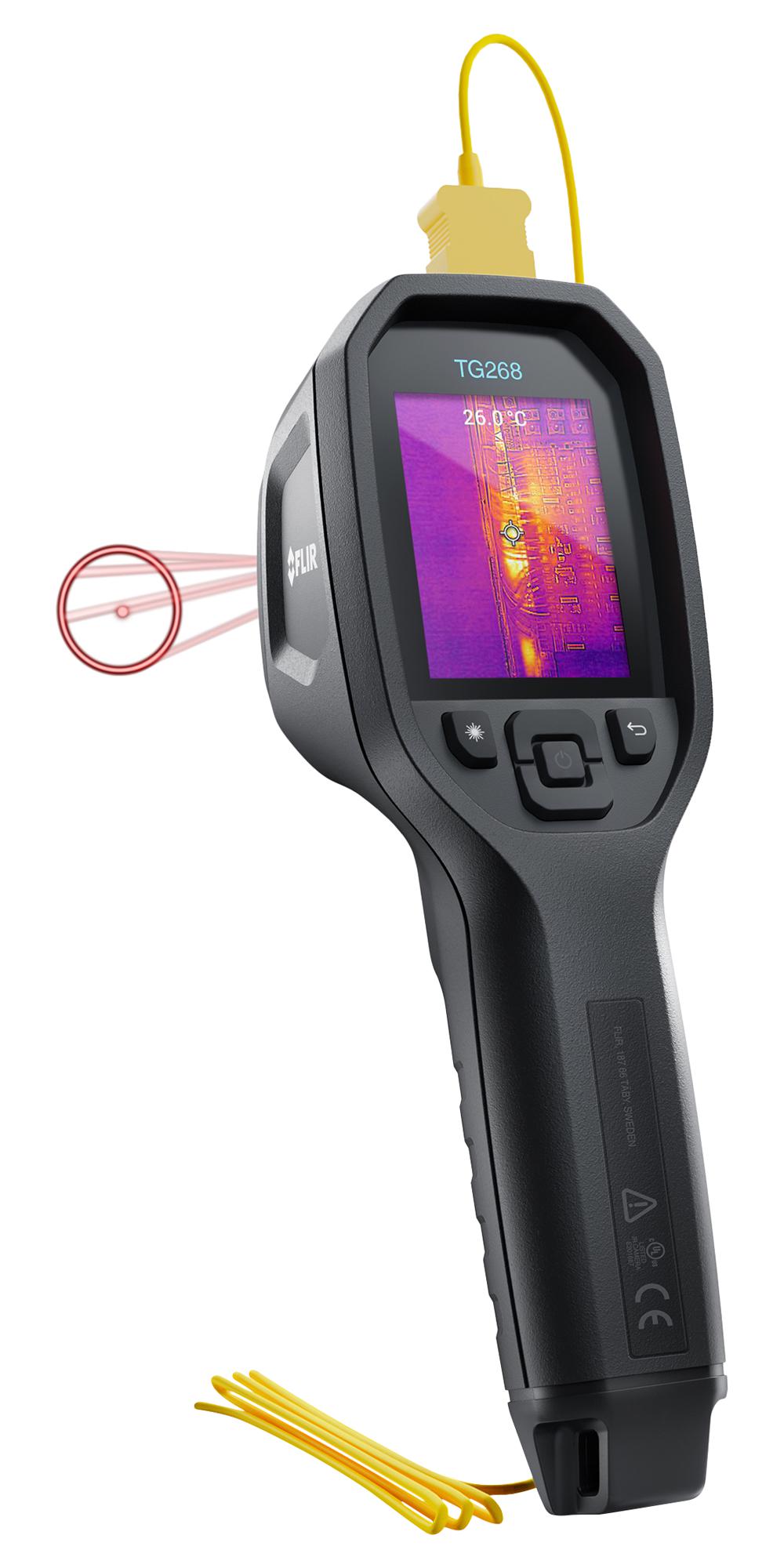

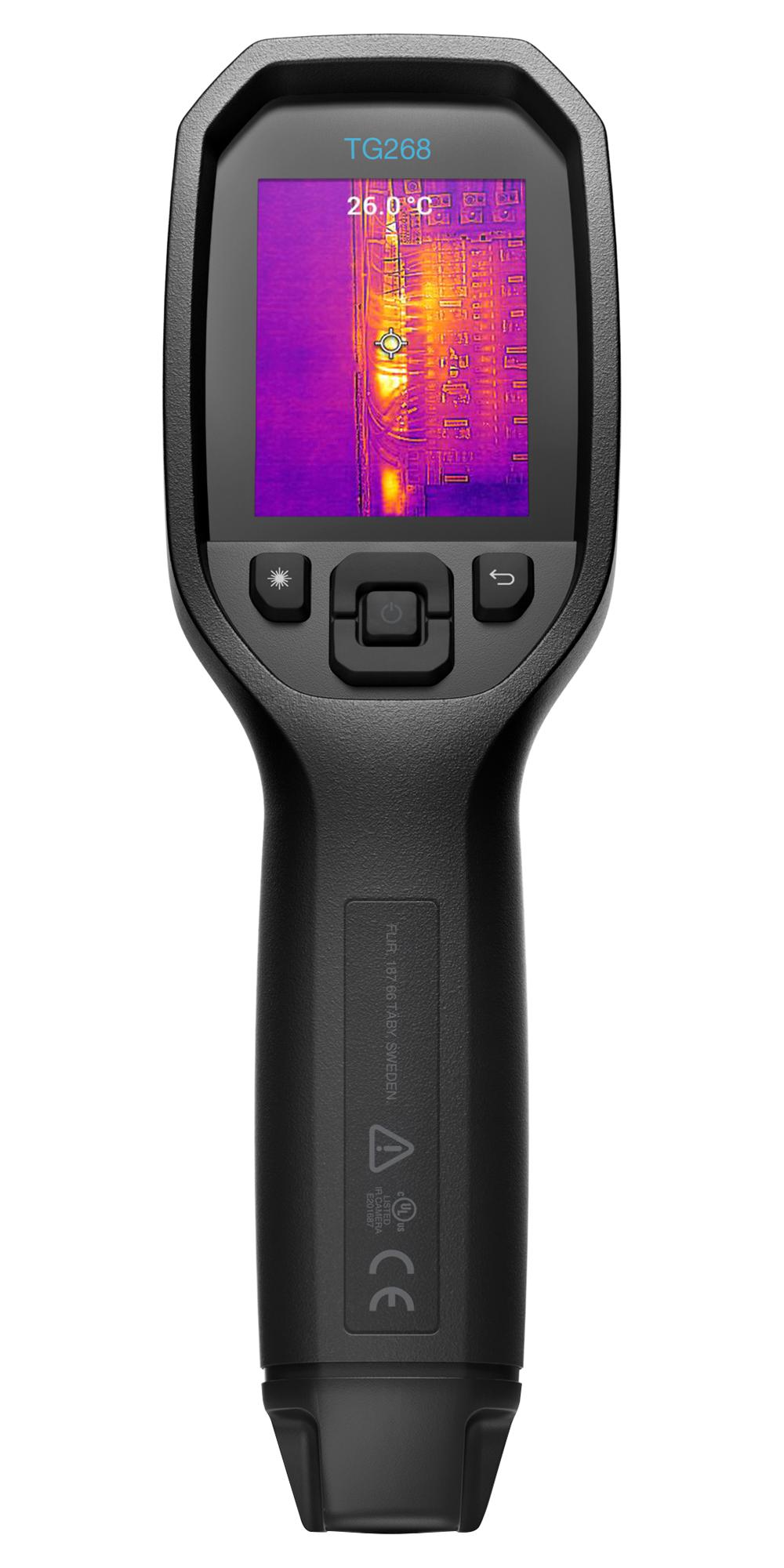

TG268 is a 24:1 spot IR thermal imaging camera with bullseye laser and type K thermocouple. It quickly locates problems with FLIR-patented MSX® image enhancement for added detail and super resolution for upscaling thermal images to 320 x 240. Main applications include inspecting electrical, mechanical, and automotive equipment, monitoring equipment for signs of degradation before it fails, ensuring energy efficiency in building inspections and conducting process manufacturing and quality assurance checks on high-temperature applications at safe distances.
- 160 x 120 IR resolution, 44° x 57° field of view (H x V)
- Spectral range from 7.5 to 14µm
- Accurately measure temperatures up to 400°C (752°F)
- Capture readings, images, and videos for analysis and sharing with the FLIR METERLiNK® app
- Rugged IP54 rating and 2m ( 6ft ) drop tested with bright LED flashlight
- 2.4” colour LCD, 320 × 240 pixels display
- eMMC 8 GB storage
- USB 2.0, BLE interface
- Operating temperature range from 10°C to 45°C (14°F to 113°F)
Product details
| Temperature Min |
-25°C |
| IR Resolution |
160 x 120 |
| Field of View (H x V) |
44° x 57° |
| Image Capture Frequency |
- |
| Product Range |
- |
| Temperature Max |
400°C |
| Thermal Sensitivity (NETD) |
0.05°C |
| IR Focus Distance Min |
500mm |
| Manufacturer Warranty |
- |
| SVHC |
No SVHC (21-Jan-2025) |
