LATTICE SEMICONDUCTOR LFCPNX-PCIEB-EVN Bridge Kit, LFCPNX-100-9LFG672I, CertusPro-NX, FPGA

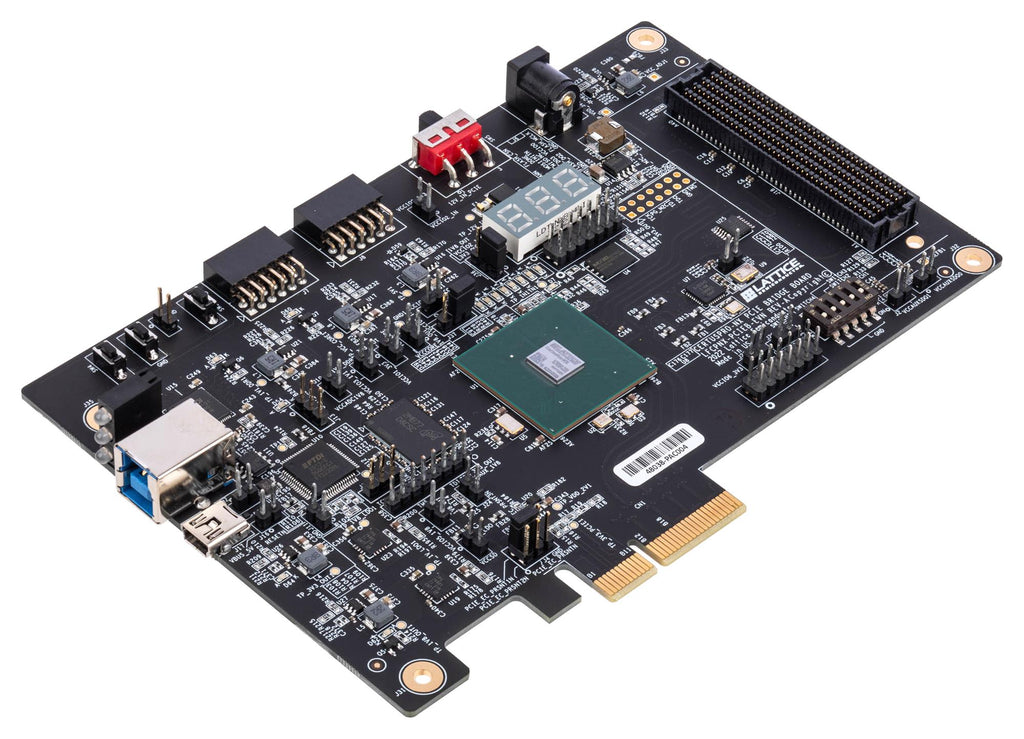

LFCPNX-PCIEB-EVN is a CertusPro-NX PCIe bridge board. It features the CertusPro-NX 100K FPGA which is built on Lattice Nexus™ FPGA platform using low power 28nm FD-SOI technology. The CertusPro-NX PCIe Bridge board offers system designers a platform that expands support for Lattice based high performance video bridging designs by offering flexible FMC based Camera, Video or Networking I/O options. The board enables Camera sensor modules such as MIPI, LVDS, and SLVS-EC to be connected via an FMC module to enable bridging over PCIe. Additionally, there are available FMC board options for common video and networking interfaces such as HDMI, DisplayPort, CoaXPress, 10/100/1000 Ethernet, and 1/10 Gig Ethernet as well, supporting a broad range of interfacing and bridging options for CertusPro-NX based designs.

• I/O expansion options – supports FMC interface, PMOD connections, along with access to 2× SerDes ch
• CertusPro-NX PCIe Bridge BRD has a built-in download controller for programming CertusPro-NX device
• It uses an FT2232H Future Technology Devices International (FTDI) part to convert USB to JTAG
• Multiple reference clock sources
• USB-B connection for device programming and Inter-Integrated Circuit Bus (I2C) utility
• On-board boot flash – 128Mb Serial Peripheral Interface (SPI) flash, with quad read feature

Contents

CertusPro-NX PCIe bridge board, 12V AC/DC power adapter and international plug adapters, Cables, Quick start guide with Lattice Radiant software download information.
