Product Overview
Also known as
B32642B6473J
Product details
| Dielectric Type |
Double Metallized PP |
| Capacitance |
0.047µF |
| Typical Applications |
Electronic Ballasts, LLC Topology, High Frequency, Switched-Mode Power Supply |
| Voltage(AC) |
400V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
15mm |
| Peak Current |
- |
| ESR |
0.017ohm |
| Product Length |
18mm |
| Product Height |
12mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
630V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
2.7kV/µs |
| RMS Current (Irms) |
3.7A |
| Product Diameter |
- |
| Product Width |
6mm |
| Ripple Current |
3A |
| Product Range |
B32642B Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (15-Jan-2018) |
Other details

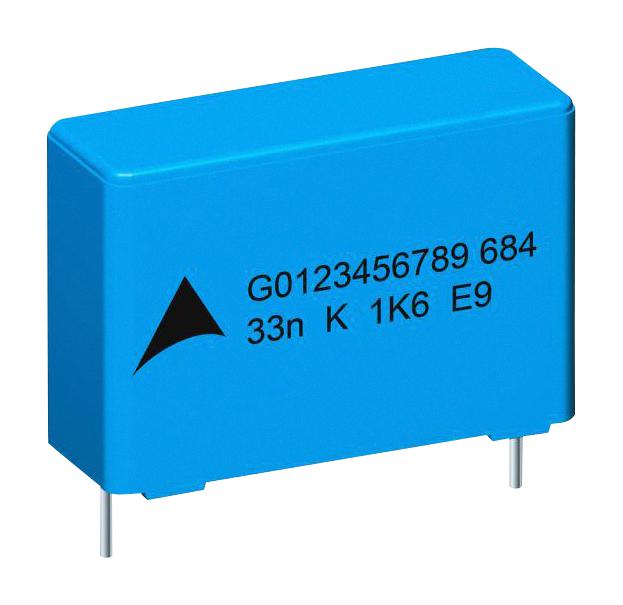

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
