Product Overview

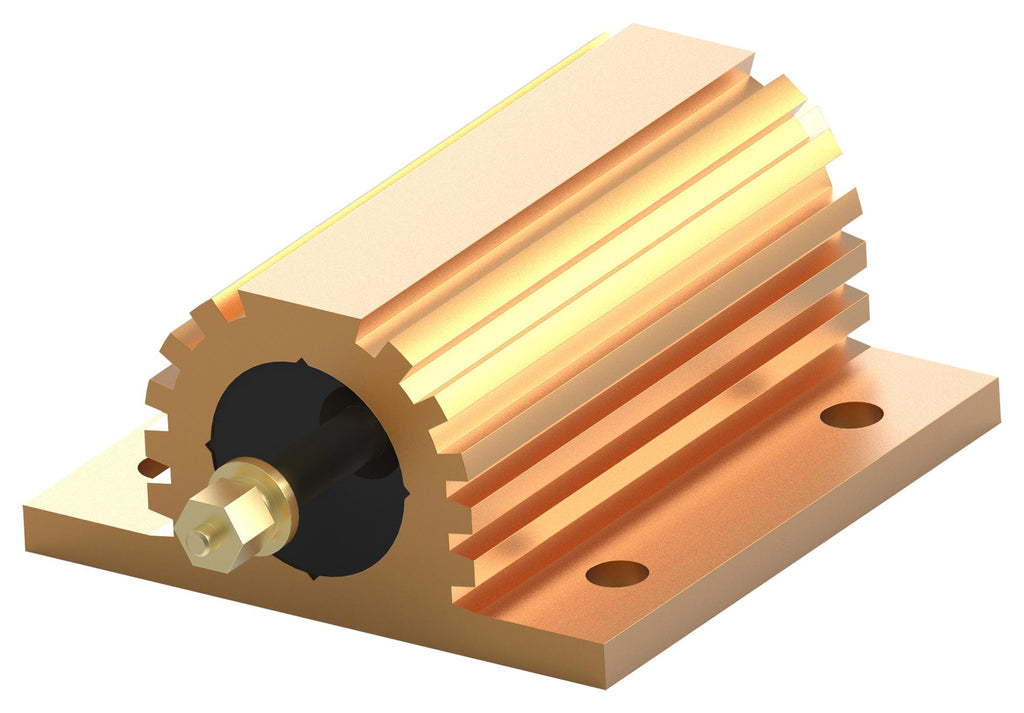

TE CONNECTIVITY - CGS HSC100S8K2J Resistor, 8.2 kohm, HS Series, 100 W, ± 5%, Threaded Stud, 1.9 kV
Product details
| Resistance |
8.2kohm |
| Power Rating |
100W |
| Resistor Terminals |
Threaded Stud |
| Resistor Technology |
Wirewound |
| Resistor Type |
High Power |
| Product Length |
66mm |
| Product Height |
24mm |
| Operating Temperature Max |
200°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Product Range |
HS Series |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
1.9kV |
| Temperature Coefficient |
± 25ppm/°C |
| Resistor Mounting |
Panel Mount |
| Product Width |
48mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
TE CONNECTIVITY - CGS |
| Part Number |
HSC100S8K2J |
| Quantity |
Each |
