Product Overview

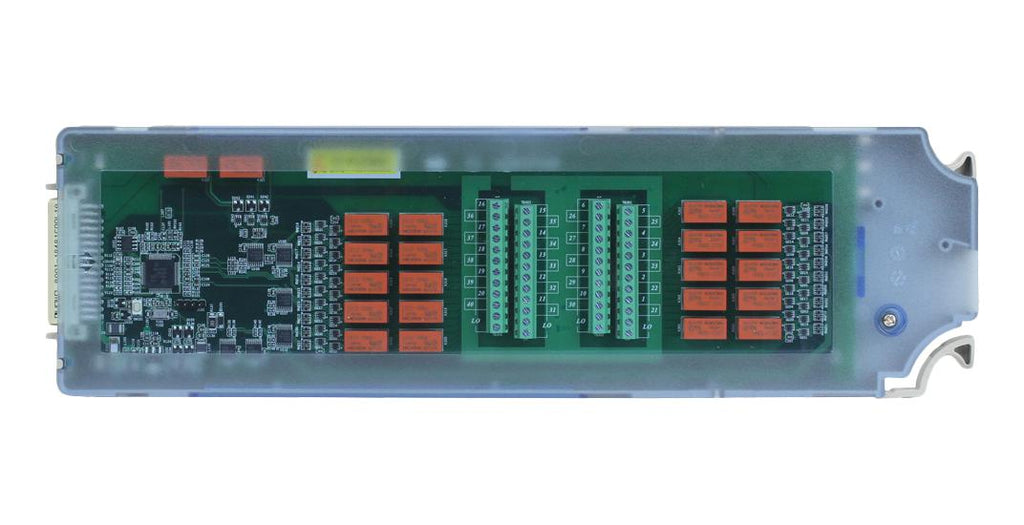

DM303 40-CH single-ended multiplexer is the highest density module with 40 single-wire inputs using armature relays for achieving scanning speeds up to 80 channels per second. All inputs connect to a common signal ground, making it suitable for applications in battery testing, component characterization, and benchtop testing. The common signal ground line is isolated from ground and can be floated up to 300 V. This module also supports 2-wire internal measurements except current.
- Scanning speed up to 80 channels per second
- Single-wire switching for common low applications
- Supports 2-wire measurement (except current)
- Channel-to-ground isolation
- Single-wire armature switching
- 10MHz bandwidth
- 80ch/s speed, 300V maximum voltage
Product details
| Accessory Type |
40-Channel Single-Ended Multiplexer Module |
| Product Range |
DAQ3120 Series |
| For Use With |
B&K Precision DAQ3120 Series Data Acquisition Systems |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
B&K PRECISION |
| Part Number |
DM303 |
| Quantity |
Each |
| Technical Data Sheet (91.00B) EN |
View or download |
