Product Overview
R5F100LLAFA#10 is an RL78/G13 low-power, high-function microcontroller for general-purpose applications. This has an on-chip oscillator, data flash, A/D converter, and more. The built-in safety features (a function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications, from home and consumer appliances to industrial equipment. Applications include office automation, home appliances, healthcare, and security.
- RL78 CPU core : CISC architecture with 3-stage pipeline
- Code flash memory : prohibition of block erase and rewriting (security function)
- On-chip debug function, self-programming (with boot swap function/flash shield window function)
- Number of rewrites: 1,000,000 times (TYP.), voltage of rewrites: VDD = 1.8 to 5.5V
- Power management and reset function: on-chip power-on-reset (POR) circuit
- On-chip voltage detector (LVD) (select interrupt and reset from 14 levels)
- On-chip BCD (binary-coded decimal) correction circuit
- 512KB flash ROM, 8KB data flash, 32KB RAM

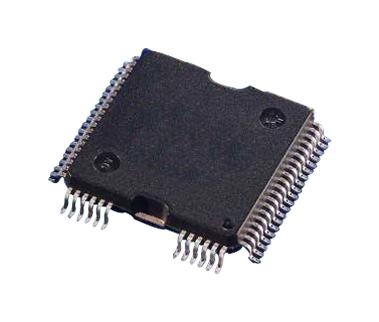

- 64-pin LQFP package
- Consumer applications, operating ambient temperature : -40°C to +85°C
Product details
| Product Range |
RL78 Family RL78/G1x Series RL78/G13 Group Microcontrollers |
| Data Bus Width |
16 bit |
| Program Memory Size |
512KB |
| IC Case / Package |
LQFP |
| Interfaces |
CSI, I2C, SPI, UART |
| ADC Channels |
12Channels |
| Supply Voltage Min |
1.6V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Family |
RL78 |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
RL78 |
| Operating Frequency Max |
32MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
58I/O's |
| RAM Memory Size |
32KB |
| ADC Resolution |
8Bit, 10Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
85°C |
| MCU Series |
RL78/G1x |
| Qualification |
- |
Other details
| Brand |
RENESAS |
| Part Number |
R5F100LLAFA#10 |
| Quantity |
Each |
| Technical Data Sheet (4.35MB) EN |
View or download |
