Product Overview

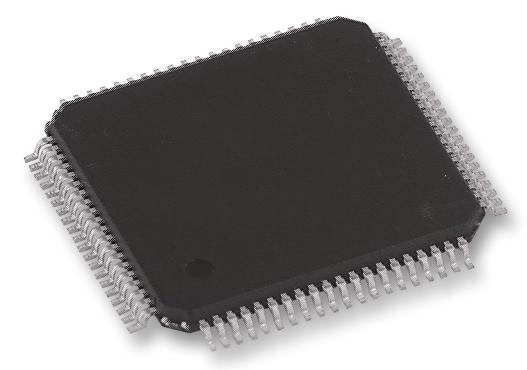

R5F10WMGAFA#10 is a RL78/L13 standard LCD microcontroller with low power consumption, suitable for LCD display of home appliances or measurement devices. The device has a built-in segment LCD driver. The three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. Applications include healthcare, home appliances, office, and security.
- Ultra-low power consumption technology
- VDD = single power supply voltage of 1.6 to 5.5V, which can operate a 1.8V device at a low voltage
- CISC architecture with 3-stage pipeline, general-purpose registers: (8-bit register × 8) × 4 banks
- On-chip BCD (binary-coded decimal) correction circuit
- 128KB flash ROM
- 4KB data flash
- 8KB RAM
- 80 pins LQFP package
- Fields of application: consumer applications, TA = -40°C to +85°C
Product details
| Product Range |
RL78 Family RL78/L1x Series RL78/L13 Group Microcontrollers |
| Data Bus Width |
16 bit |
| Program Memory Size |
128KB |
| IC Case / Package |
LQFP |
| Interfaces |
CSI, I2C, SPI, UART |
| ADC Channels |
12Channels |
| Supply Voltage Min |
1.6V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Family |
RL78 |
| MSL |
MSL 3 - 168 hours |
| Device Core |
RL78 |
| Operating Frequency Max |
24MHz |
| No. of Pins |
80Pins |
| No. of I/O's |
65I/O's |
| RAM Memory Size |
8KB |
| ADC Resolution |
8Bit, 10Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
85°C |
| MCU Series |
RL78/L1x |
| Qualification |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
RENESAS |
| Part Number |
R5F10WMGAFA#10 |
| Quantity |
Each |
| Technical Data Sheet (2.18MB) EN |
View or download |
