Product Overview
CY8C4025LQAS411XQLA1 is an automotive PSOC™ 4 microcontroller. It combines programmable and reconfigurable analogue and digital blocks with flexible automatic routing. The PSOC™ 4000S product family is a member of the PSOC™ 4 platform architecture. It is a combination of a microcontroller with standard communication and timing peripherals, a capacitive touch-sensing system (CAPSENSE™) with best-in-class performance, programmable general-purpose continuous-time and switched-capacitor analogue blocks, and programmable connectivity. The PSOC™ 4000S product will be upward compatible with members of the PSOC™ 4 platform for new applications and design needs.
- Automotive Electronics Council (AEC) AEC-Q100 qualified
- Low-power 1.71V to 5.5V operation
- Deep sleep mode with operational analogue and 2.5µA digital system current
- LCD drive capability, LCD segment drive capability on all GPIOs
- Low-power compute and integration, differentiated touch HMI features in MCU
- Supports resistive and current sensing, high-speed communication: fast I2C/CAN-FD
- Increased security w/ encryption support, easy-to-use software for prototyping app
- 24MHz maximum CPU speed, 32KB flash, 4KB SRAM
- 24-pin QFN package
- Operating temperature range from -40 to +85°C
Product details
| Product Range |
- |
| Core Architecture |
ARM Cortex-M0 |
| No. of Pins |
24Pins |
| MPU Series |
CY8C40xx |
| CPU Speed |
24MHz |
| MPU Case Style |
QFN |
| MPU Family |
PSoC 4 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
INFINEON |
| Part Number |
CY8C4025LQAS411XQLA1 |
| Quantity |
Each |
| Technical Data Sheet (181.00B) EN |
View or download |

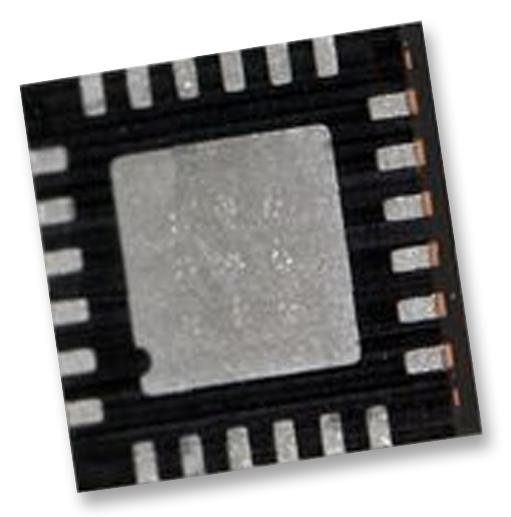

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
