Product Overview
ANALOG DEVICES MAX40109IATP+ Signal Conditioning AFE, Precision, 1 Channel, 1 Wire, I2C, PLC, 3 to 36V, -40 to 125°C, TQFNEP-20
Product details
| AFE IC Type |
Precision Signal Conditioning Analogue Front End |
| No. of Channels |
1Channels |
| Supply Voltage Min |
3V |
| Operating Temperature Min |
-40°C |
| IC Case / Package |
TQFN-EP |
| No. of Pins |
20Pins |
| Sampling Rate |
16kSPS |
| Product Range |
- |
| AFE IC Application |
Pressure Sensors, Strain Gauges, Force Sensors, Temperature Sensors, Wheatstone-Bridge |
| IC Interface Type |
1 Wire, I2C, PLC |
| Supply Voltage Max |
36V |
| Operating Temperature Max |
125°C |
| IC Package Type |
TQFN-EP |
| Resolution |
12 bits |
| Qualification |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
MAX40109IATP+ |
| Quantity |
Each |
| Technical Data Sheet (80.00B) EN |
View or download |

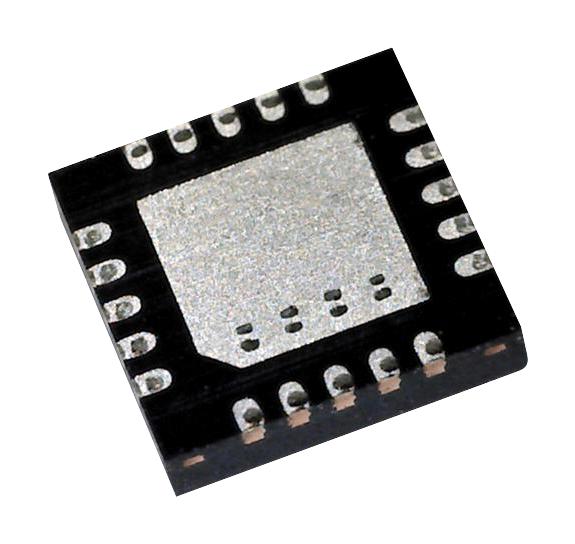

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
