Product Overview
ANALOG DEVICES AD7543JNZ Digital to Analogue Converter, 12 bit, Serial, 5.25 V, 4.75 V, 1 Channels, Current
Product details
| Resolution |
12bit |
| Supply Voltage Min |
5.25V |
| Supply Voltage Max |
4.75V |
| No. of Channels |
1Channels |
| Output Type |
Current |
| No. of Pins |
16Pins |
| Operating Temperature Min |
-40°C |
| Product Range |
Single 12-Bit Current Output DACs |
| SVHC |
No SVHC (04-Feb-2026) |
| Interfaces |
Serial |
| Supply Voltage Range |
5V |
| ADC / DAC Case Style |
PDIP |
| IC Case / Package |
DIP |
| IC Mounting |
Through Hole |
| Operating Temperature Max |
85°C |
| Qualification |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD7543JNZ |
| Quantity |
Each |

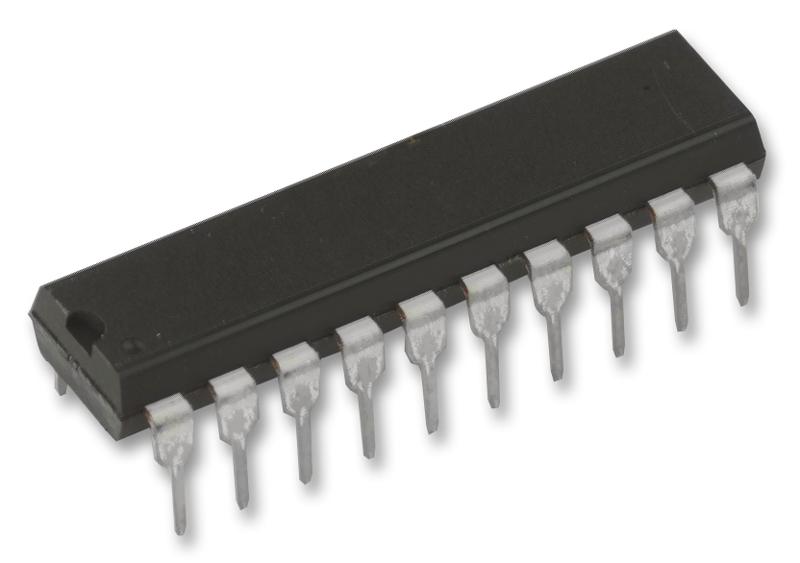

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
