Product Overview

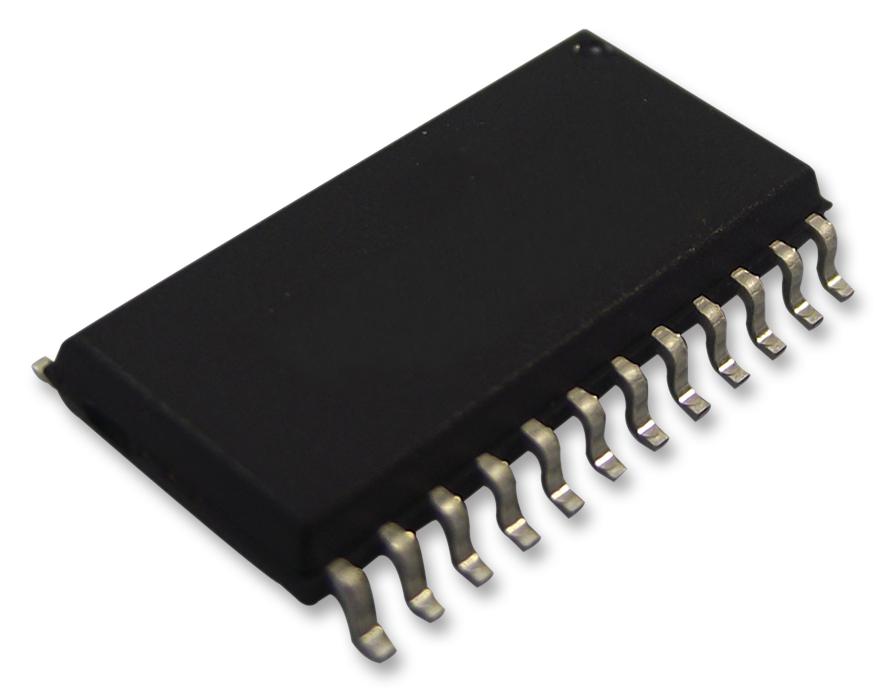

ANALOG DEVICES AD7247JRZ Digital to Analogue Converter, 12 bit, Parallel, 15.75 V, 14.25 V, 2 Channels, Voltage
Product details
| Resolution |
12bit |
| Interfaces |
Parallel |
| Supply Voltage Max |
14.25V |
| No. of Channels |
2Channels |
| Output Type |
Voltage |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Product Range |
Dual 12-Bit Voltage Output DACs |
| MSL |
MSL 3 - 168 hours |
| Supply Voltage Min |
15.75V |
| Supply Voltage Range |
± 15V |
| ADC / DAC Case Style |
SOIC |
| IC Case / Package |
SOIC |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
85°C |
| Qualification |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD7247JRZ |
| Quantity |
Each |
| Technical Data Sheet (83.00B) EN |
View or download |
