Product Overview

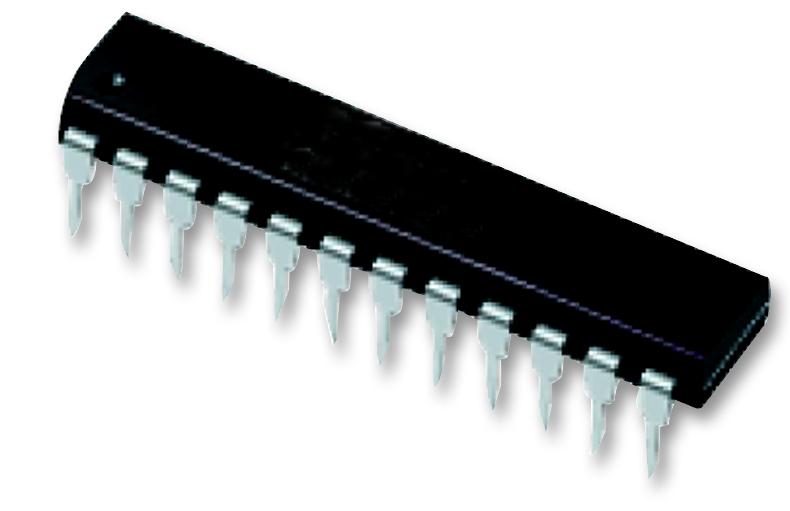

ANALOG DEVICES AD7225KNZ Digital to Analogue Converter, 8 bit, Parallel, 15.75 V, 14.25 V, 4 Channels, Voltage
Product details
| Resolution |
8bit |
| Supply Voltage Min |
15.75V |
| Supply Voltage Max |
14.25V |
| No. of Channels |
4Channels |
| Output Type |
Voltage |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Product Range |
Quad 8-Bit Voltage Output DACs |
| SVHC |
No SVHC (04-Feb-2026) |
| Interfaces |
Parallel |
| Supply Voltage Range |
11.4V to 16.5V, 14.25V to 15.75V |
| ADC / DAC Case Style |
PDIP |
| IC Case / Package |
PDIP |
| IC Mounting |
Through Hole |
| Operating Temperature Max |
85°C |
| Qualification |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD7225KNZ |
| Quantity |
Each |
