Product Overview
ANALOG DEVICES AD8643TRZ-EP Operational Amplifier, 4 Channels, 3.5 MHz, 3 V/µs, 5V to 26V, ± 2.5V to ± 13V, NSOIC, 14 Pins
Product details
| No. of Channels |
4Channels |
| Slew Rate Typ |
3V/µs |
| IC Case / Package |
NSOIC |
| Amplifier Type |
JFET |
| Input Offset Voltage |
70µV |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| Qualification |
- |
| Gain Bandwidth Product |
3.5MHz |
| Supply Voltage Range |
5V to 26V, ± 2.5V to ± 13V |
| No. of Pins |
14Pins |
| Rail to Rail |
Rail - Rail Output (RRO) |
| Input Bias Current |
0.25pA |
| Operating Temperature Min |
-55°C |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD8643TRZ-EP |
| Quantity |
Each |
| Technical Data Sheet (88.00B) EN |
View or download |

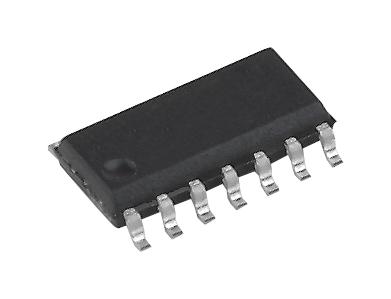

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
