Product Overview
ANALOG DEVICES LTC2301CMS#PBF Analogue to Digital Converter, SAR, 12 bit, 14 kSPS, 1 Channels, Pseudo Differential, I2C
Product details
| ADC Architecture |
SAR |
| Sampling Rate |
14kSPS |
| Supply Voltage Type |
Single |
| Interfaces |
I2C |
| Supply Voltage Max |
5.25V |
| IC Case / Package |
MSOP |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resolution |
12bit |
| No. of Channels |
1Channels |
| Input Channel Type |
Pseudo Differential |
| Supply Voltage Min |
4.75V |
| ADC / DAC Case Style |
MSOP |
| No. of Pins |
12Pins |
| Operating Temperature Min |
0°C |
| Product Range |
Single 12-Bit SAR ADCs |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
LTC2301CMS#PBF |
| Quantity |
Each |
| EOL Notices (539.83KB) EN |
View or download |

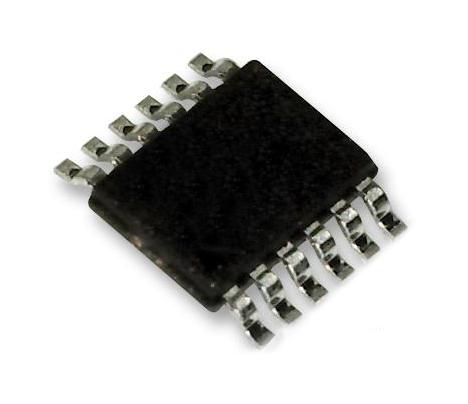

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
