Product Overview
ANALOG DEVICES LTC1594IS#PBF Analogue to Digital Converter, SAR, 12 bit, 16.8 kSPS, 4 Channels
Product details
| ADC Architecture |
SAR |
| Sampling Rate |
16.8kSPS |
| Input Channel Type |
Pseudo Differential, Single Ended |
| Interfaces |
SPI |
| Supply Voltage Max |
5.5V |
| IC Case / Package |
NSOIC |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resolution |
12bit |
| No. of Channels |
4Channels |
| Supply Voltage Type |
Single |
| Supply Voltage Min |
4.5V |
| ADC / DAC Case Style |
NSOIC |
| No. of Pins |
16Pins |
| Operating Temperature Min |
-40°C |
| Product Range |
Quad 12-Bit SAR ADCs |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
LTC1594IS#PBF |
| Quantity |
Each |

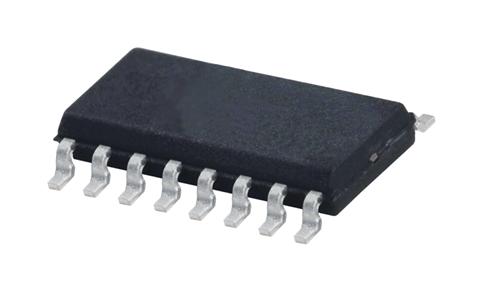

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
