Product Overview
ANALOG DEVICES AD7825BRZ Analogue to Digital Converter, Pipelined, 8 bit, 2 MSPS, 4 Channels, Single Ended, Parallel
Product details
| ADC Architecture |
Pipelined |
| Sampling Rate |
2MSPS |
| Input Channel Type |
Single Ended |
| Interfaces |
Parallel |
| ADC / DAC Case Style |
WSOIC |
| IC Case / Package |
WSOIC |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resolution |
8bit |
| No. of Channels |
4Channels |
| Supply Voltage Type |
Single |
| Supply Voltage Min |
4.5V |
| Supply Voltage Max |
5.5V |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Product Range |
Quad 8-Bit Pipelined ADCs |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD7825BRZ |
| Quantity |
Each |
| Technical Data Sheet (88.00B) EN |
View or download |

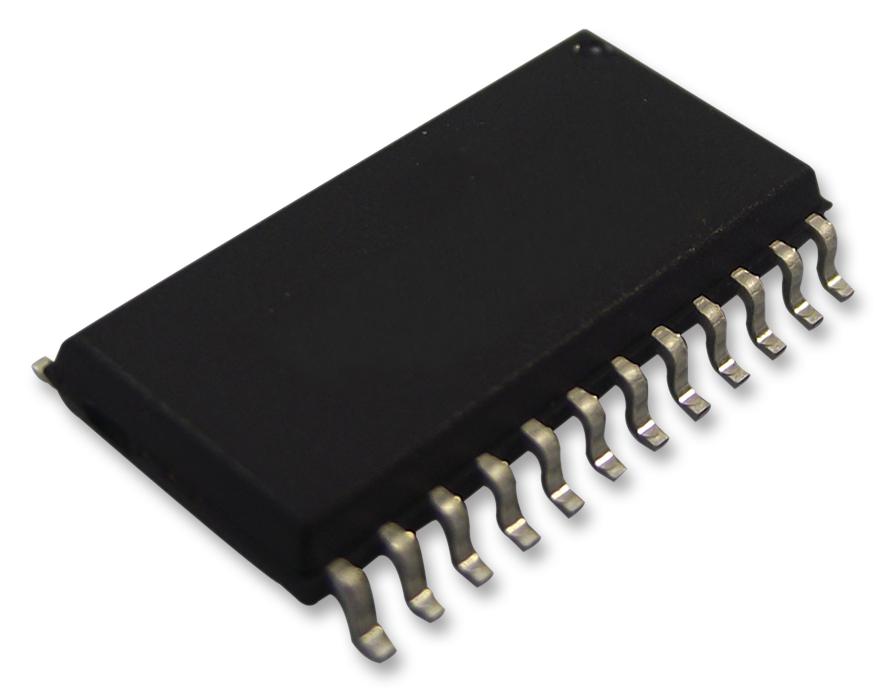

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
