Product Overview
ANALOG DEVICES AD7472ARZ Analogue to Digital Converter, SAR, 12 bit, 1.5 MSPS, 1 Channels, Single Ended, Parallel
Product details
| ADC Architecture |
SAR |
| Sampling Rate |
1.5MSPS |
| Input Channel Type |
Single Ended |
| Interfaces |
Parallel |
| Supply Voltage Max |
5.25V |
| IC Case / Package |
WSOIC |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resolution |
12bit |
| No. of Channels |
1Channels |
| Supply Voltage Type |
Single |
| Supply Voltage Min |
2.7V |
| ADC / DAC Case Style |
WSOIC |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Product Range |
Single 12-Bit SAR ADCs |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
AD7472ARZ |
| Quantity |
Each |
| Technical Data Sheet (83.00B) EN |
View or download |

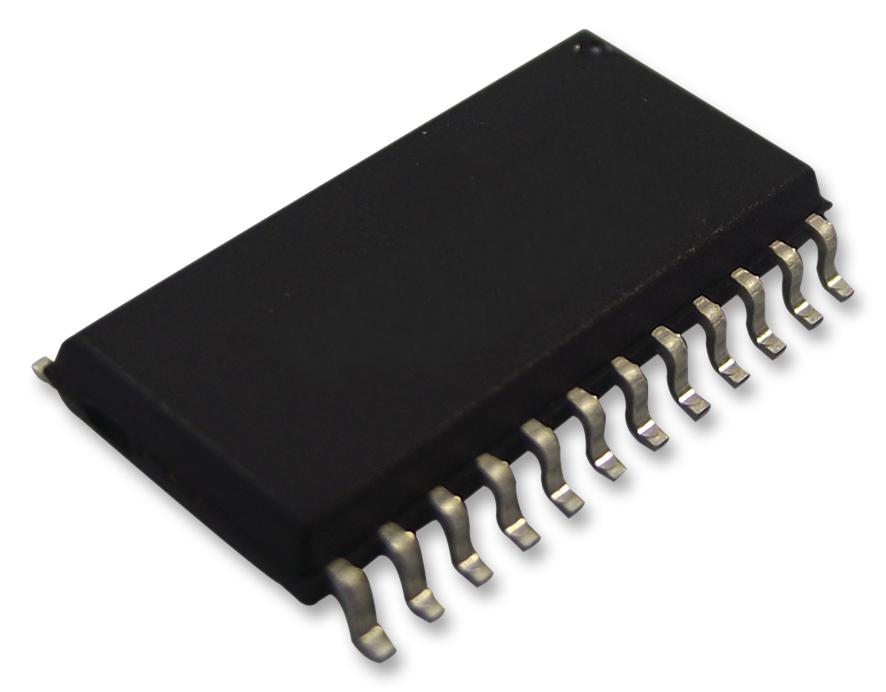

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
