Product Overview

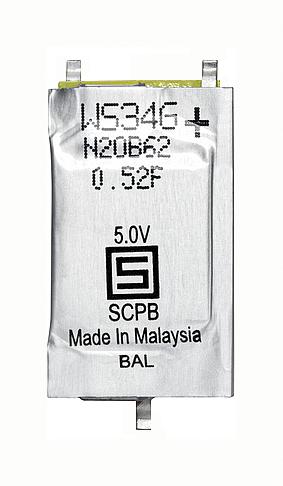

3-153-432 is a SCPB model low ESR dual cell Prismatic ultra-thin supercapacitor for space-constrained applications. It provides high power density in an ultra-thin, lightweight design. Optimized for applications requiring high durability and excellent low temperature performance. Applications include sensors, small mobile devices, small power supplies, mobile energy harvesting and uninterruptible power supply.
- 1200mF capacitance
- 5V rated voltage
- 25mohm ESR
- 5µA maximum leakage current
- 8A RMS current, 30A peak current
- High pulse power and very low self discharge
- Allowable operation temperature range from -40°C to 70°C
- PCB, SMT mounting
Product details
| Capacitance |
1.2F |
| Capacitor Terminals |
Solder |
| Lead Spacing |
- |
| Capacitor Case / Package |
- |
| ESR |
0.025ohm |
| Product Length |
39mm |
| Product Height |
3.9mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Voltage(DC) |
5V |
| Capacitance Tolerance |
- |
| Lifetime @ Temperature |
- |
| Capacitor Mounting |
Surface Mount |
| Product Diameter |
- |
| Product Width |
17mm |
| Product Range |
SCPB Series |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (04-Feb-2026) |
