Product Overview

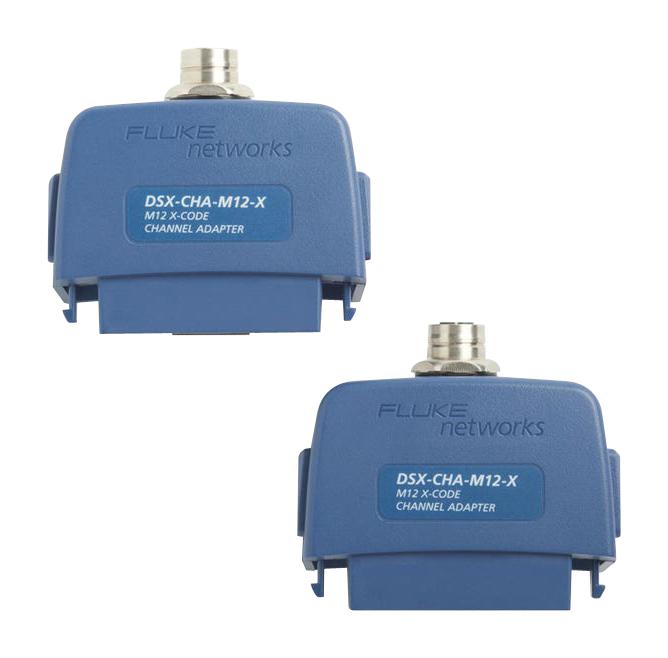

DSX-CHA-M12-X-S is a 8-position adapter (set of 2) (included with DSX2-5-IE-K1, industrial Ethernet DSX kit 1) for installations using 4 pairs that can support network speeds up to 10 Gigabit Ethernet (10GBASE-T) has 8-position, X-coded female connectors. M12X adapter fully supports TIA standards up to 6A or ISO up to Class-FA limits. This adapter allows users to test and certify or validate installed cabling links to ensure reliable transmission. The M12 series of connectors can be more suited to the demanding physical environment of industrial installations. The M12 adapter can be used for both channel and patch cord tests. When used for channel testing, the mated NEXT of the plug and jack at the adapter is not included in the measurement.
- For use with DSX cable analyser series
- Dimension is 76.2mm x 53.34mm x 30.48mm
Product details
| Accessory Type |
Channel Adapter Set |
| Product Range |
DSX Series |
| For Use With |
Fluke DSX Cable Analysers Series |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
FLUKE NETWORKS |
| Part Number |
DSX-CHA-M12-X-S |
| Quantity |
Each |
| Technical Data Sheet (429.58KB) EN |
View or download |
