Description
Product Overview
- NPN bipolar power transistor
- Collector-emitter voltage (VCEO): 140V
- Collector current (IC): 25A continuous
- Power dissipation: 300W (with proper heatsink)
- TO-3 metal package for superior heat dissipation and durability
- Suitable for linear and switching applications
Applications
Audio, Signal Processing, LED Lighting, Motor Drive & Control, Power Management, DC/DC Converters, Temperature, Industrial Automation
Contents

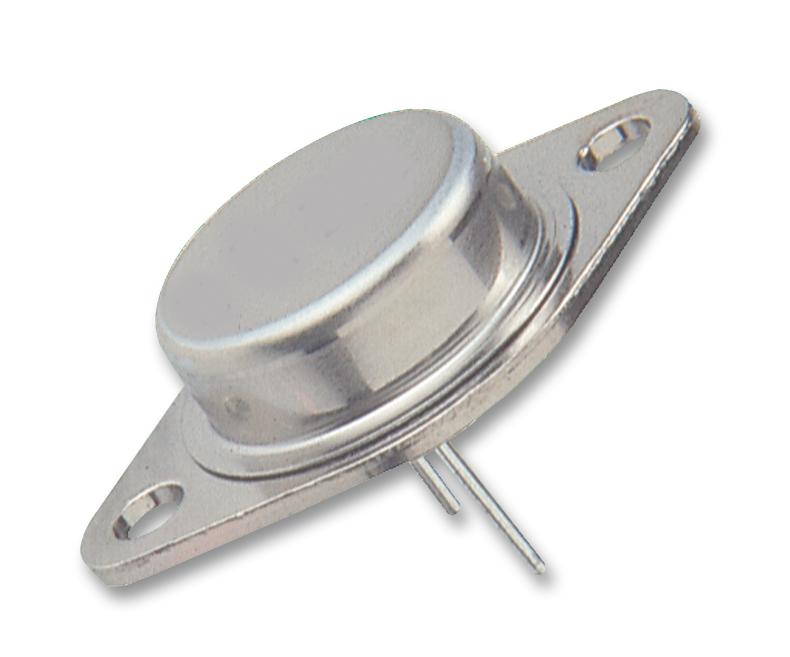

The 2N5038 is a durable, high-power NPN silicon transistor designed for demanding switching and linear amplification applications. Its robust TO-3 metal can package provides exceptional thermal conductivity and mechanical strength, enabling reliable operation under harsh conditions. With a collector-emitter voltage rating of 140V, collector current capability of up to 25A, and a maximum power dissipation of 300W (with adequate heatsinking), the 2N5038 is ideally suited for industrial motor control, power supply regulation, high-current switching, and amplifier stages.
Product details
| Transistor Polarity | NPN |
| Continuous Collector Current | 20A |
| Transistor Case Style | TO-3 |
| No. of Pins | 2Pins |
| DC Current Gain hFE Min | 20hFE |
| Product Range | Multicomp Pro Bipolar NPN Transistors |
| MSL | MSL 1 - Unlimited |
| Collector Emitter Voltage Max | 90V |
| Power Dissipation | 140W |
| Transistor Mounting | Through Hole |
| Transition Frequency | - |
| Operating Temperature Max | 200°C |
| Qualification | - |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | MULTICOMP PRO |
| Part Number | 2N5038. |
| Quantity | Each |
| Technical Data Sheet (488.18KB) EN | View or download |
