Product Overview

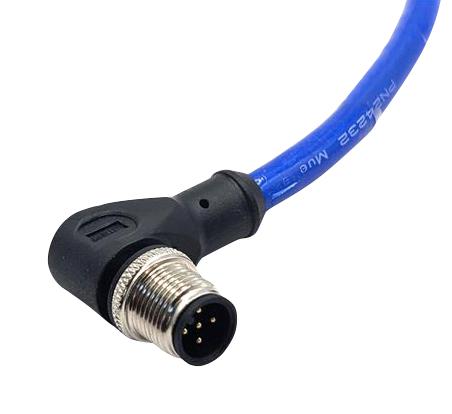

C5B82M005 is a Mueller Blue-Flex™ M12 cordset. It is a 5-position instrumentation cable assembly with a right-angle male to free end configuration and 22AWG unshielded conductors. The cordset utilizes the Mueller Blue-Flex™ cable, 22AWG unshielded 5 conductor, silicone outer and inner conductor jackets for maximum flexibility.
- Cable length: 5m
- Voltage rating is 60V AC/DC
- Current rating is 4A
- Operating temperature range from -40°C to 150°C
- Material: coupling nuts (anti-vibration) – nickel plated brass
- Pins/contacts: gold plated brass
- Flex rating: 20 million cycles
- Torsion rating: 20 million cycles
- Meets standard: IEC 61076-2-101
- Protection class: IEC IP68 and FT2 flame test rating
Product details
| Connector Type A |
90° M12 Plug |
| No. of Positions |
5 Positions |
| Cable Length - Imperial |
16.4ft |
| SVHC |
No SVHC (21-Jan-2025) |
| Connector Type B |
Free End |
| Cable Length - Metric |
5m |
| Product Range |
Blue-Flex C5B82Uxxx Series |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
C5B82M005 |
| Quantity |
Each |
| Technical Data Sheet (67.00B) EN |
View or download |
