Product Overview

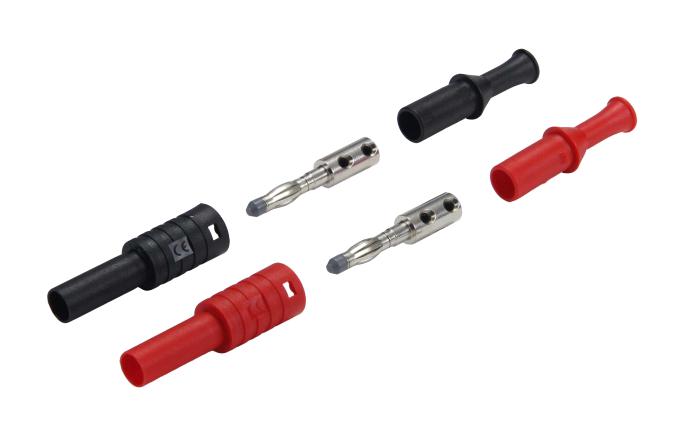

CT3205 is a straight banana plug set. It has pair of (R & B) 4mm Do-it-Yourself (DIY) sheathed straight banana plugs that allow users to build their own test leads and meet the latest safety standards. Solderless set screw wire connection and snap together housing for easy field assembly.
- IEC rating when using equally rated lead wire
- Convenient black and red packaged pair
- IEC voltage rating - 1000V CAT III
- Three (3) piece assembly
- Requires 1.5mm Allen wrench for assembly
- 1,000V CAT III IEC rating
- 36A current maximum
- 10 milliohms maximum resistance
- Temperature range from -20°C to +80°C
Product details
| Gender |
Plug |
| Current Rating |
36A |
| Contact Plating |
- |
| Contact Material |
- |
| Product Range |
- |
| Connector Mounting |
Cable Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Black, Red |
| Contact Termination Type |
Solderless |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
CAL TEST ELECTRONICS |
| Part Number |
CT3205 |
| Quantity |
Each |
| Technical Data Sheet (73.00B) EN |
View or download |
| Manufacturer Catalogue (33.92MB) EN |
View or download |
