Product Overview

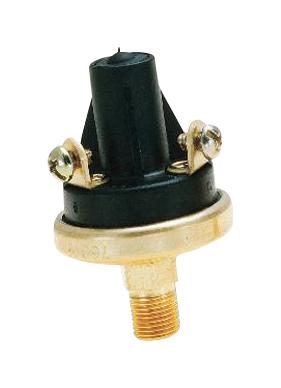

77039-00000040-01 is a 5000 series pressure switch with Metri-Pack terminal. It is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a polyimide film diaphragm for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity.
- Dual circuit (one circuit adjustable), mates with Packard P/N 12034147)
- 4-6PSI contact setting
- Direct action blade contact type
- Silver alloy, gold plated contacts, plated steel base, glass reinforced polyester cover
- SPST-N.O.circuitry
- Temperature range from -40°F to + 250°F
- 1/8 -27 NPT male thread connector
Product details
| Pressure Type |
- |
| Operating Pressure Min |
4psi |
| Contact Configuration |
SPDT-NO |
| Switching Current Max |
15A |
| Transducer Connection / Termination |
Metri-Pack |
| Deadband Max |
2.5psi |
| Operating Temperature Max |
250°F |
| SVHC |
No SVHC (21-Jan-2025) |
| Pressure Port Type |
NPT Male |
| Operating Pressure Max |
6psi |
| Switching Voltage Max |
24VDC |
| Pressure Port Size |
1/8" |
| Deadband Min |
- |
| Operating Temperature Min |
-40°F |
| Product Range |
5000 Series |
Other details
| Brand |
HONEYWELL |
| Part Number |
77039-00000040-01 |
| Quantity |
Each |
| Technical Data Sheet (121.38KB) EN |
View or download |
