Product Overview

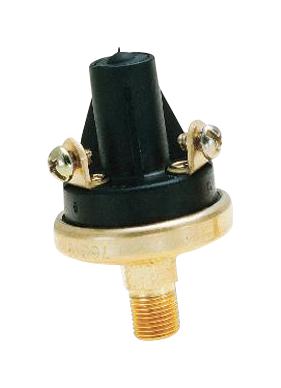

76052-00000150-01 is a 5000 series extended duty pressure switch with direct action blade contact and standard screw terminal. It is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a polyimide film diaphragm for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefit is its durable construction, compact size, and enhanced set point integrity.
- Screw single circuit 2 terminals, N.O. circuitry
- Contact setting pressure range from 14 to 24PSI, 15PSI factory set point
- Direct action blade contact, silver alloy with gold plated contacts
- 1/8 -27 NPT male thread connector
- #8-32 screws, 1/4” blade, 280 series metri-pack terminals
- Plated steel base, glass reinforced polyester cover, polyimide film diaphragm
- Temperature range from -40°F to + 250°F
Product details
| Pressure Type |
- |
| Operating Pressure Min |
14psi |
| Contact Configuration |
SPST-NO |
| Switching Current Max |
15A |
| Transducer Connection / Termination |
Screw |
| Deadband Max |
8psi |
| Operating Temperature Max |
250°F |
| SVHC |
No SVHC (21-Jan-2025) |
| Pressure Port Type |
NPT Male |
| Operating Pressure Max |
24psi |
| Switching Voltage Max |
24VDC |
| Pressure Port Size |
1/8" |
| Deadband Min |
- |
| Operating Temperature Min |
-40°F |
| Product Range |
5000 Series |
Other details
| Brand |
HONEYWELL |
| Part Number |
76052-00000150-01 |
| Quantity |
Each |
| Technical Data Sheet (121.38KB) EN |
View or download |
