Product Overview

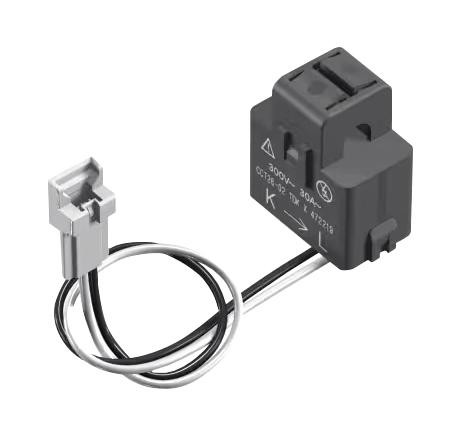

CCT261631-30-06-02 is a CCT series clamp type AC current sensor for energy management systems such as HEMS, BEMS, FEMS, CEMS. It accommodates automatic processes from wire wrapping and winding to soldering, ensuring high-quality and stable supply.
- Clamp type for easy installation on existing power equipment
- Equipped with a built-in open-circuit protective device
- 26mm length, 16mm width, 31mm height
- AC 0.1 to 30Arms (50/60Hz) applied current, AC 50Arms continuous AC maximum allowed current
- 6mm internal clamp section diameter
- Operating temperature range from -20°C to 60°C
- 3000:1 nominal current transformation ratio
- 492ohm secondary winding resistance, 10mA±1% (30A, 50/60Hz) output current accuracy
- 7.5V clamp element open-circuit protection
- 100Mohm over (DC500V) insulation resistance, UL 94 V-0 flame retardant grade
Product details
| Sensor Output Type |
Analogue |
| Measured Current |
AC |
| Current Sensor Technology |
- |
| Secondary Signal Type |
- |
| Operating Temperature Min |
-20°C |
| Product Range |
CCT Series |
| Supply Voltage Range |
- |
| Accuracy |
- |
| Primary Current |
100mA to 30A |
| Sensor Mounting |
- |
| Operating Temperature Max |
60°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TDK |
| Part Number |
CCT261631-30-06-02 |
| Quantity |
Each |
| Technical Data Sheet (115.00B) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
