Product Overview

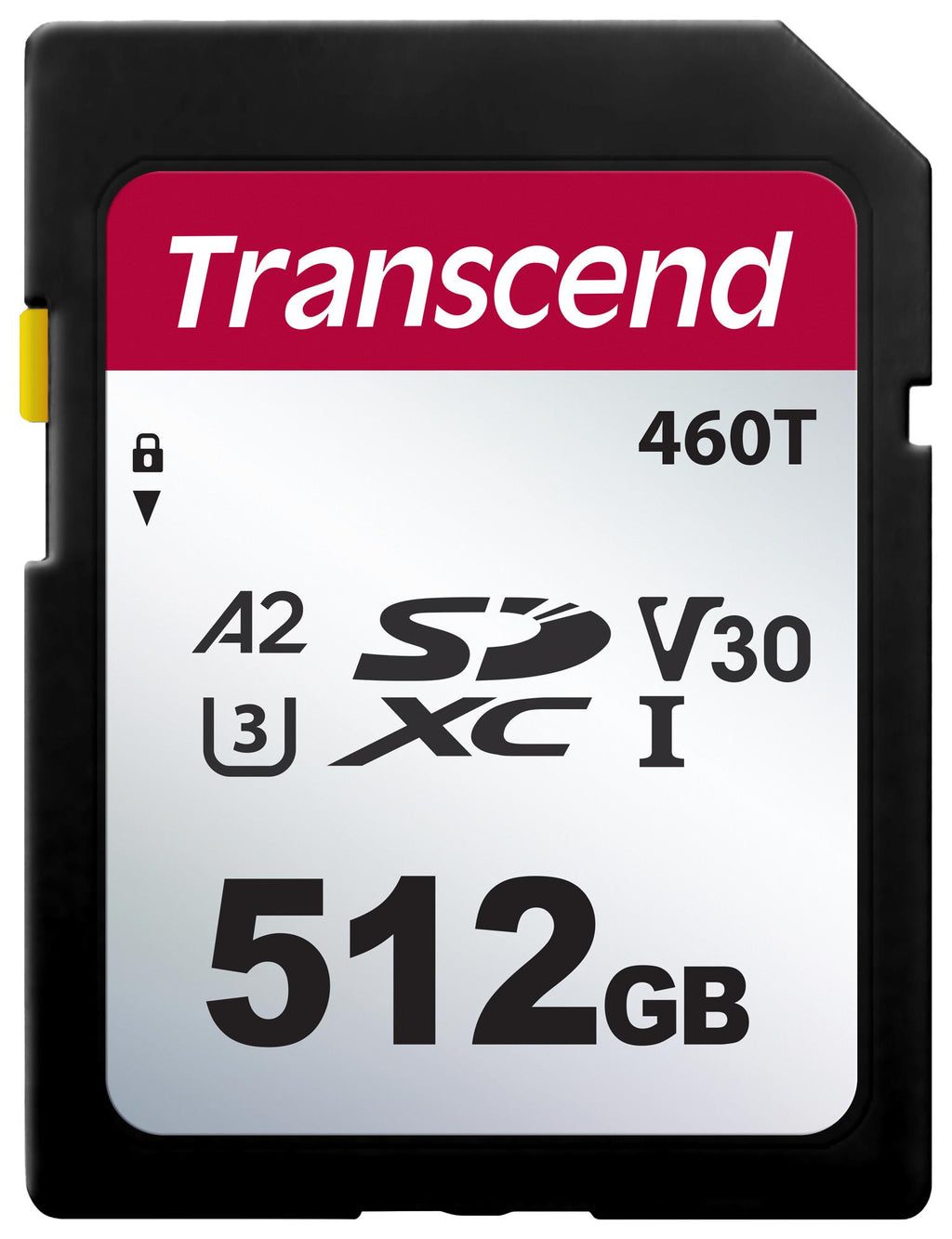

TS512GSDC460T-VS1 is a SDXC 460T SD card. It combines the advantages of high performance and exceptional endurance at an affordable price, making it ideal for demanding industrial applications such as POS terminals as well as portable devices equipped with an SD memory card slot.
- Electrostatic protection (ESD IEC 61000-4-2), compliant with video speed class 30 (V30)
- Compliant with application performance class 2 (A2), compliant with SD specification 6.1
- Endurance: 3K P/E cycles (program/erase cycles) guaranteed
- Firmware features: wear-levelling, early move, built-in LDPC ECC functionality
- Support S.M.A.R.T. function to conduct health monitoring, analysis and reporting for storage devices
- 512GB storage capacity
- 112-layer 3D NAND flash, three-year limited warranty
- Dimensions: 24mm x 32mm x 2.1mm
- Operating voltage: 2.7V to 3.6V, FCC / UKCA certified
- Standard operating temperature range from -25°C to 85°C
Product details
| Flash Memory Card Type |
SDXC Card, Class 2, Class 30 |
| Supply Voltage Nom |
- |
| Operating Temperature Max |
85°C |
| Memory Capacity |
512GB |
| Operating Temperature Min |
-25°C |
| SVHC |
To Be Advised |
Other details
| Brand |
TRANSCEND |
| Part Number |
TS512GSDC460T-VS1 |
| Quantity |
Each |
| Technical Data Sheet (989.48KB) EN |
View or download |
