Product Overview

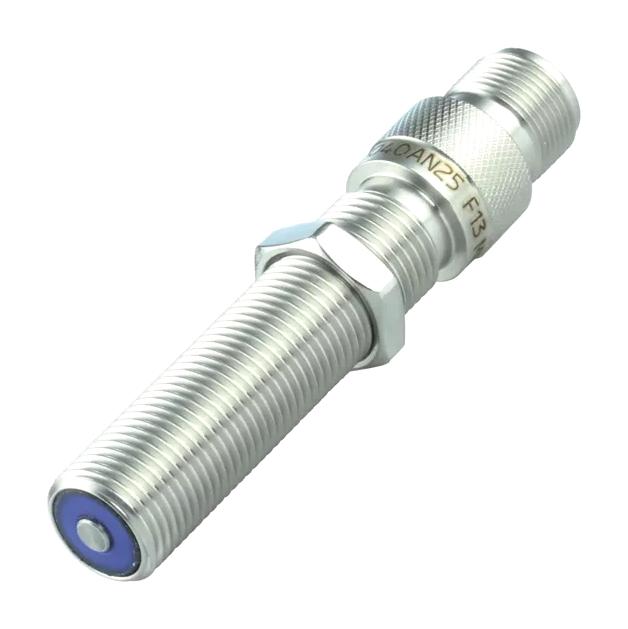

HONEYWELL 3040A Speed Sensor, Industrial, VRS Magnetic/General Purpose, 0.38 m/s, Power Output Series
Product details
| Supply Voltage Min |
- |
| Sensor Terminals |
Connector |
| Operating Temperature Max |
120°C |
| Output Voltage (Peak to Peak) |
70V p-p |
| Gear Pitch Range |
12DP (Module 2.11) or Coarser |
| Coil Resistance Max |
162ohm |
| Surface Speed |
0.38m/s |
| SVHC |
No SVHC (07-Jul-2017) |
| Supply Voltage Max |
- |
| Operating Temperature Min |
-55°C |
| Speed Sensor Type |
VRS General Purpose |
| Inductance |
85mH |
| Coil Resistance Min |
120ohm |
| Housing Diameter |
19.05mm |
| Product Range |
Power Output Series |
Other details
| Brand |
HONEYWELL |
| Part Number |
3040A |
| Quantity |
Each |
| Technical Data Sheet (257.24KB) EN |
View or download |
