Description
Product Overview

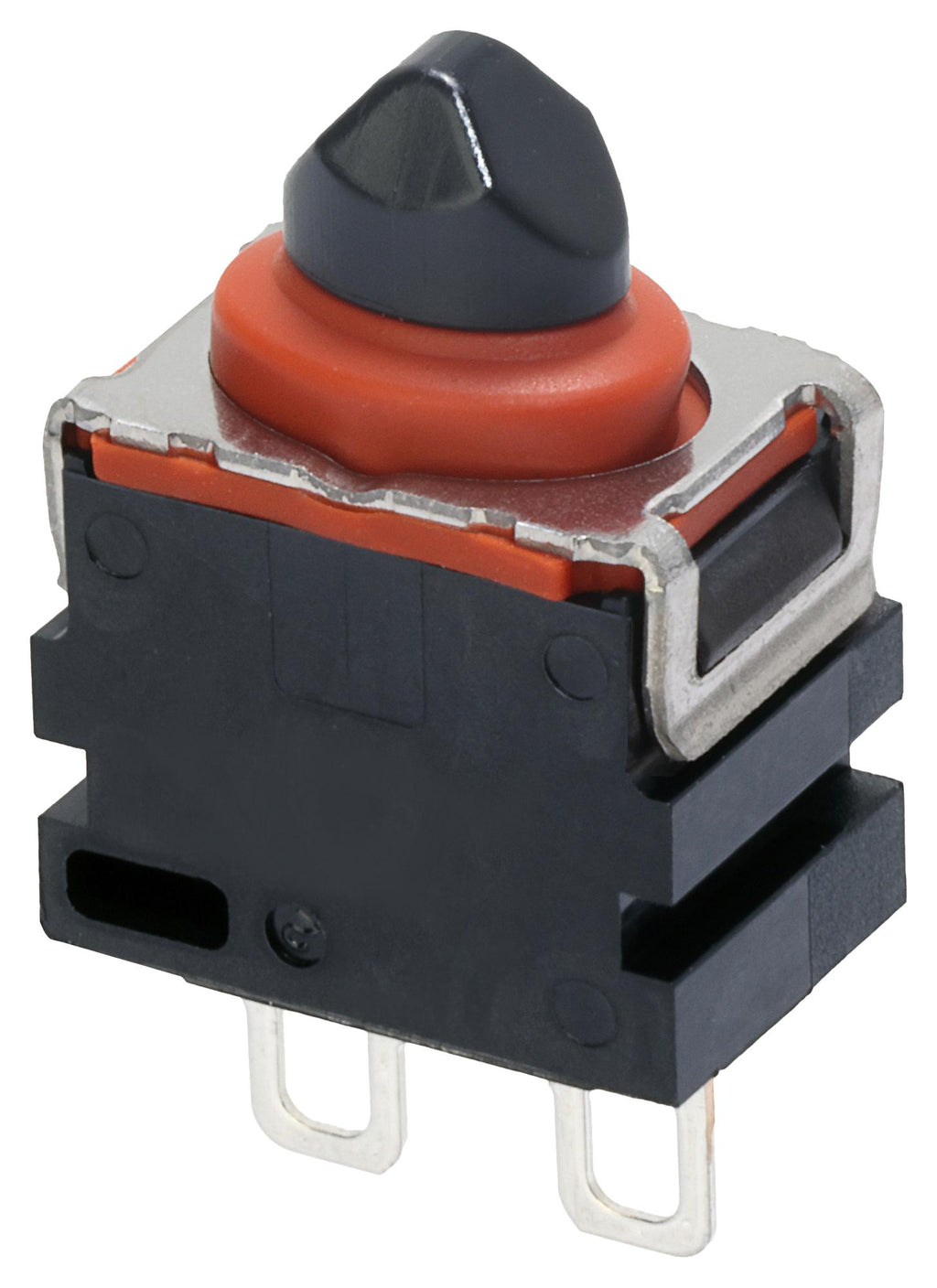

D2EW-A02HS is a D2EW series sealed ultra subminiature basic switch.
- Side slot mounting structure
- Pin plunger microswitch actuator
- SPST-NC contact configuration
- Solder terminals
- 100mA max contact current
- 12V DC nom voltage rating and 100mA resistive load at 20±2°C/65±5% (ambient temp/humidity)
- Industry's smallest class (8.3 x 7.0 x 5.3mm) D2GW equivalent size
- 1.2N max operating force
- Contributes to energy saving
- UL/cUL approved model
Warnings
Before mounting, dismounting, wiring, or inspecting a switch, be sure to turn OFF the power supply to the switch, otherwise an electric shock may be received or the switch may burn.
Product details
| Microswitch Type | Ultra Subminiature |
| Contact Configuration | SPST-NC |
| Contact Current Max | 100mA |
| Product Range | D2EW Series |
| Operating Force Max | 1.2N |
| Microswitch Actuator | Pin Plunger |
| Switch Terminals | Solder Lug |
| Contact Voltage DC Nom | 12V |
| Contact Voltage AC Nom | - |
| SVHC | No SVHC (21-Jan-2025) |
Other details
| Brand | ARATAS |
| Part Number | D2EW-A02HS |
| Quantity | Each |
| Technical Data Sheet (2.20MB) EN | View or download |
