Product Overview

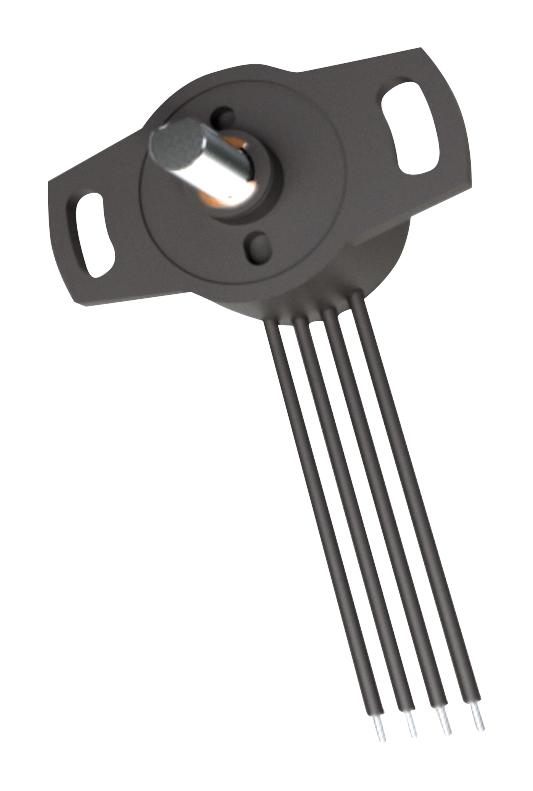

PSCR360-F-A-360R-05 is a PSCR-360 series high-precision non-contact rotary sensor. It delivers reliable, high-accuracy position feedback in compact, roughly 28-millimeter diameter housing. Its contactless measurement principle ensures minimal wear and long operational life, even under demanding conditions. With high linearity (±0.3%) and 12bit resolution, the sensor provides precise and stable output signals tailored to your application’s requirements. Full redundancy options enhance safety-critical operations, while its cost-effective design helps maintain project budgets. The PSCR-360 is a versatile solution that combines durability, accuracy, and affordability. It also features robust construction that resists shock, vibration, and wide temperature ranges, that is why it’s commonly used in industrial automation, off-highway vehicles, medical, renewable energy, transportation and agriculture & construction and other demanding applications.
- True, contactless operation, made for harsh environments
- Durable and robust design
- Magnet is securely fastened to the shaft and acts as only moving component in sensor
- Flat actuator, analogic output protocol
- 360° electric rotational angle
- Redundant output function
- 5V DC ±10% supply voltage
- Upto 50,000,000 cycles rotational life, 6mm shaft diameter, plain bearing type
- Integrated flange simplifies installation and alignment, makes easy to retrofit into existing system
- Self-diagnostic, IP65 sealed, -40°C to +80°C operating and storage temperature
Product details
| Sensor Type |
Rotary Angle Sensor |
| Shaft Type |
D Type Flatted End |
| Electrical Angle |
360° |
| Supply Voltage |
5V |
| Output Signal |
0.45V to 4.95V |
| Operating Temperature Max |
80°C |
| SVHC |
No SVHC (21-Jan-2025) |
| Output Type |
Analogue Ratiometric |
| Contact Type |
Non-Contact |
| Linearity |
± 0.3% |
| Supply Current |
8mA |
| Operating Temperature Min |
-40°C |
| Product Range |
PSCR-360 Series |
Other details
| Brand |
AMPHENOL PIHER SENSORS AND CONTROLS |
| Part Number |
PSCR360-F-A-360R-05 |
| Quantity |
Each |
| Technical Data Sheet (59.00B) EN |
View or download |
