| ₹ 80099.79 includes GST and import duties. | |
| B2B customers can avail ₹ 12215.22 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview
PP009-1 is a miniature high impedance passive probe designed for use with ≤ 600MHz Teledyne LeCroy oscilloscopes. Its high input resistance and low capacitance make it ideal for general purpose probing of signals with frequency content from DC through several hundred MHz.
- 500MHz bandwidth, 10:1 attenuation
- Compensation range from 10 to 20pF
- 9.5pF input capacitance, 10Mohm input resistance
- Maximum voltage is 400Vrms
- Operating temperature range from 0° to 50°C
- 1.3m (4.3ft) cable length
- For WaveRunner 6 Zi, WaveRunner Xi(A) (<= 600MHz), WaveSurfer 400 series oscilloscopes
Contents

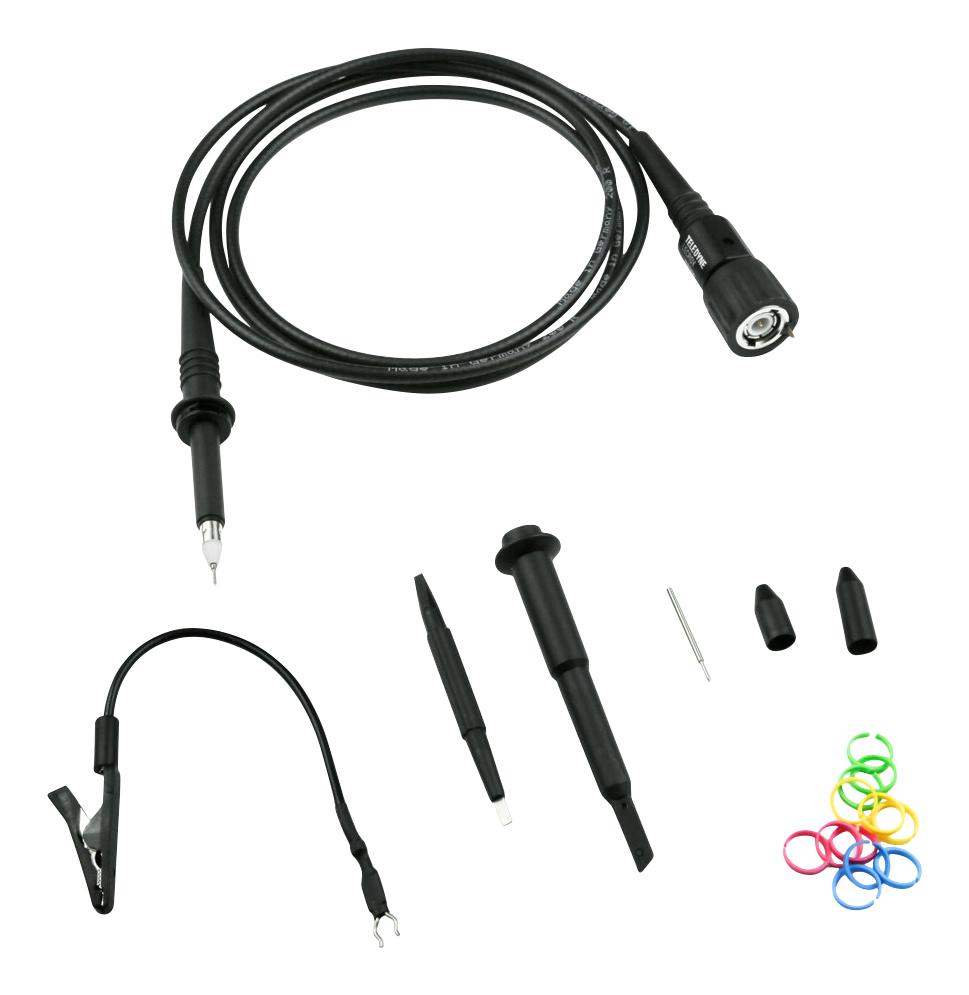

Passive probe, PK1-5MM-101 sprung hook, PK1-5MM-102 standard ground lead, PK1-5MM-103 adjustment tool, PK1-5MM-104 rigid tip 0.8mm, PK1-5MM-106 4 x 2 colour coding rings, PK1-5MM-105 insulating cap, Protective cap.
Product details
| Oscilloscope Probe Function | Passive |
| Input Voltage Max | 400V |
| For Use With | Teledyne Lecroy WaveRunner 9000 Series Oscilloscopes |
| SVHC | No SVHC (21-Jan-2025) |
| Bandwidth | 500MHz |
| Test Probe Attenuation | 10:1 |
| Product Range | PP009 Series |
Other details
| Brand | TELEDYNE LECROY |
| Part Number | PP009-1 |
| Quantity | Each |
| User Manual (336.06KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78497.79 |
| 3-5 | ₹ 77696.8 |
| 5-10 | ₹ 76094.8 |
| 10+ | ₹ 74492.8 |
Bulk discount will be automatically applied during checkout based on quantity.
