Description
Product Overview

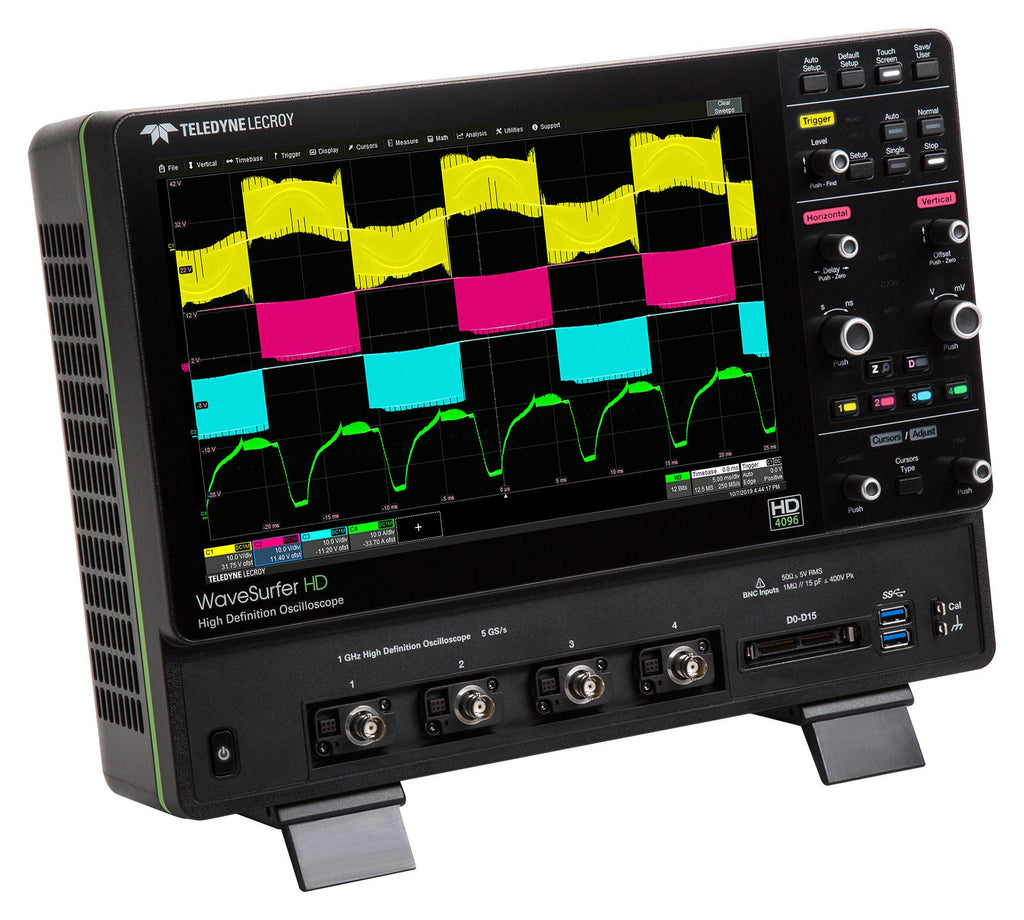

WAVESURFER 4054HD PROMO1 is a WaveSurfer 4000HD series MSO with fully loaded promotion package. It is a high definition 12-bit oscilloscope uses HD4096 technology to provide superior and uncompromised measurement performance such as 12-bit ADCs with high sample rate, high signal to noise ratio and low noise system architecture.
- 500MHz bandwidth, 4 analogue channels, 16 digital channels, 2.5GS/s sample rate
- 700ps rise time, 12.5Mpts standard memory
- 12.1” 1280 x 800 capacitive touch screen display
- Buttons/indicators color-coded to associated waveform on display
- MAUI with OneTouch user interface for intuitive and efficient operation
- USB 3.1 ports for easy connectivity, USBTMC over USB 2.0 for data offload, HDMI output
- 1 x 10/100BaseT Ethernet interface (RJ45 port)
- 16GB Micro SD card installed standard
- Dimension is (HWD) 10.7” H x 14.9” W x 6.3” D
Contents
WaveSurfer 4000HD oscilloscope, Fully loaded promotion package (WS4KHD-MSO, WS4KHD-FG, WS4KHD-AUDIO TD, WS4KHD-AUTO TD, WS4KHD-EMB TD, WS4KHD-PWR), 10 passive probe (total of 1 per channel), 1 micro SD card (installed), Micro SD card adapter, Protective front cover, Getting started guide, Commercial NIST traceable calibration with certificate, Power cable for the destination country, 3-year warranty.
Notes
Enjoy up to 62% off selected WaveSurfer oscilloscopes – offer valid while stocks last.
Product details
| Product Range | WaveSurfer 4000HD Series |
| Bandwidth | 500MHz |
| Display Memory Depth | 12.5 Mpts |
| Scope Display Type | WXGA TFT Capacitive Touch Screen |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (21-Jan-2025) |
| Scope Channels | 4 Analogue |
| Sampling Rate | 5GSPS |
| Calculated Rise Time | 700ps |
| Kit Contents | DSO, 500 MHz, 10:1 4x Passive Probes, Micro SD Card & Adapter, Cover, Start Guide, Power Cable, Cal |
| Plug Type | - |
Other details
| Brand | TELEDYNE LECROY |
| Part Number | WAVESURFER 4054HD PROMO1 |
| Quantity | Each |
| Quick Start Guide (2.66MB) EN | View or download |
| Technical Data Sheet (2.99MB) EN | View or download |
| User Manual (2.85MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2706912.45 |
| 3-5 | ₹ 2679290.89 |
| 5-10 | ₹ 2624047.78 |
| 10+ | ₹ 2568804.67 |
Bulk discount will be automatically applied during checkout based on quantity.
