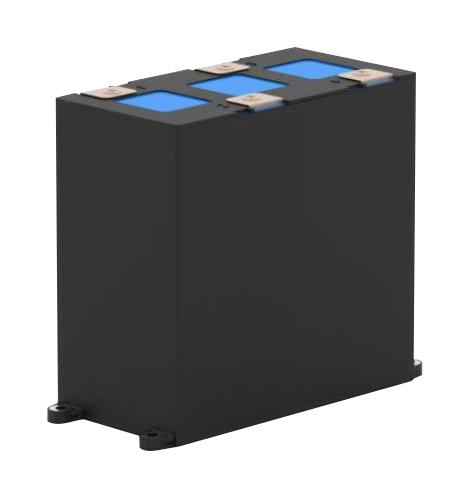

Product Overview
Also known as
B25645A1108K 13
Product details
| Dielectric Type |
Bio-Based Polypropylene Film |
| Capacitance |
980µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
- |
| Peak Current |
- |
| ESR |
- |
| Product Length |
205mm |
| Product Height |
170mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
- |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Chassis Mount |
| Voltage(DC) |
1.35kV |
| Capacitor Terminals |
Screw |
| dv/dt Rating |
- |
| RMS Current (Irms) |
- |
| Product Diameter |
- |
| Product Width |
90mm |
| Ripple Current |
- |
| Product Range |
ModCap MF B25645 Series |
| Operating Temperature Max |
75°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TDK |
| Part Number |
B25645A1108K013 |
| Quantity |
Each |
| Technical Data Sheet (68.00B) EN |
View or download |
