Description
Product Overview

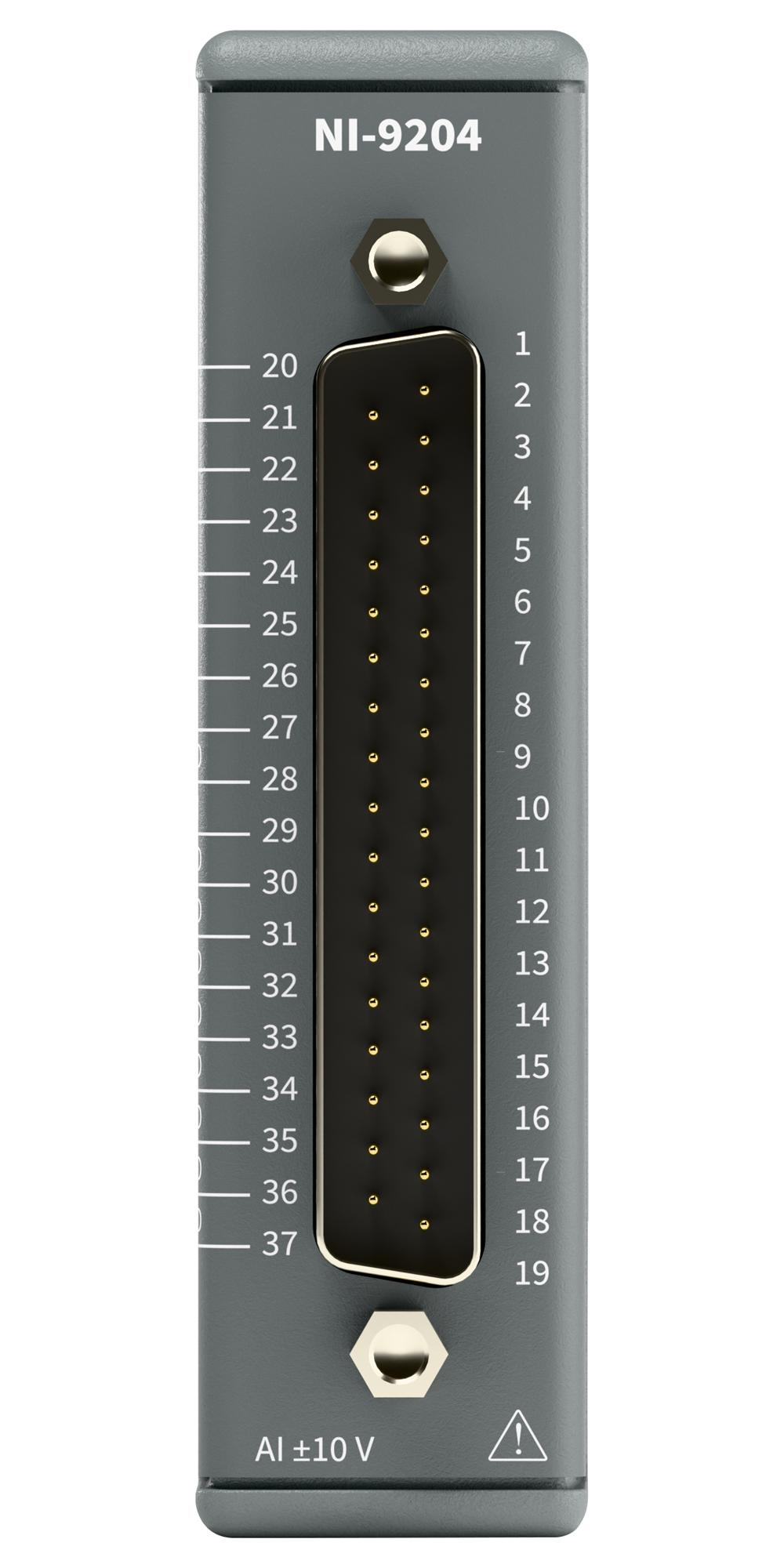

789114-01 is a NI-9204 ±10V, 250kS/s, 16-bit, 16-channel C series voltage input module. The NI-9204 helps users measure up to 16 single-ended or 8 differential voltage inputs within the same module. This module includes a multiplexed front-end that combines a programmable gain instrumentation amplifier featuring four programmable ranges from ±10V down to ±0.2V with a 16-bit ADC for accurate measurements. Additionally, the NI-9204 features both isolation and overvoltage protection to maximize measurement performance and protect against miswiring.
- Operating temperature range from -40°C to 70°C
- IP40 ingress protection
Notes
1 year warranty.
Product details
| Product Type | C Series Voltage Input Module |
| Resolution | 16bit |
| No. of Output Channels | - |
| Supply Voltage Range | ± 200mV, ± 1V, ± 5V, ± 10V |
| For Use With | NI DAQ Devices |
| SVHC | No SVHC (07-Nov-2024) |
| Sampling Rate | 250kSPS |
| No. of Input Channels | 16Channels |
| No. of I/O's | - |
| Operating Temperature Range | -40°C to +70°C |
| Product Range | NI-9204 |
Other details
| Brand | NI / EMERSON |
| Part Number | 789114-01 |
| Quantity | Each |
| Technical Data Sheet (153.02KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 106435.06 |
| 3-5 | ₹ 105348.98 |
| 5-10 | ₹ 103176.84 |
| 10+ | ₹ 101004.7 |
Bulk discount will be automatically applied during checkout based on quantity.
