Product Overview

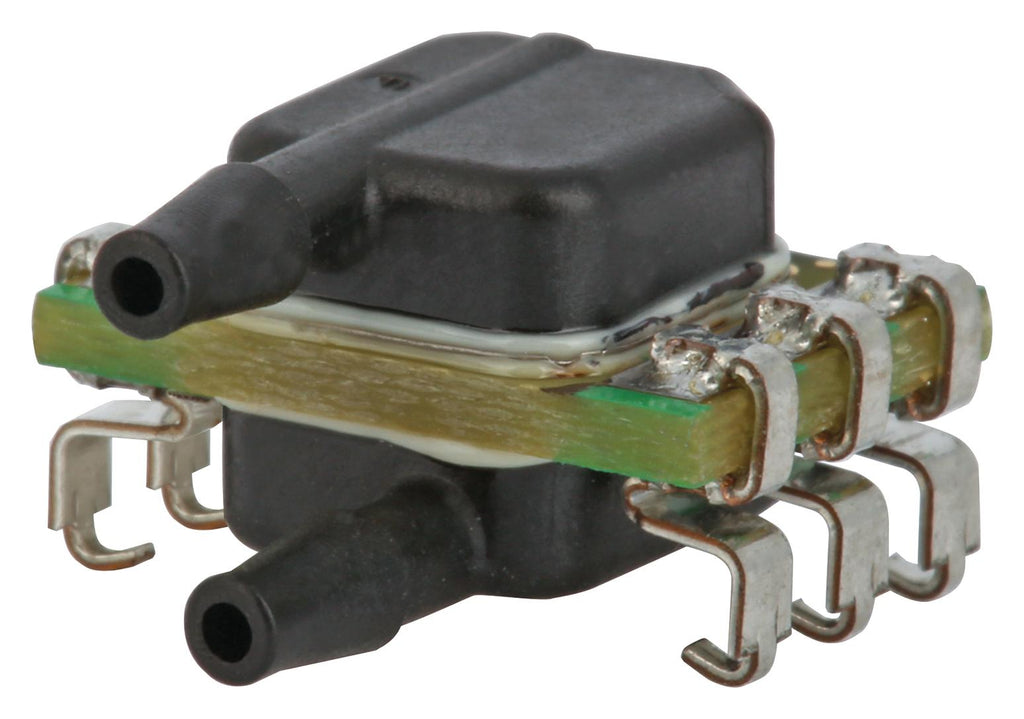

ABP2MRRN002NDAA5XX is an ABP2 series piezoresistive silicon pressure sensor in a SMT (Surface Mount Technology) package. It is calibrated and temperature-compensated for sensor offset, sensitivity, temperature effects, and accuracy errors including non-linearity, repeatability, and hysteresis—using an on-board Application-Specific Integrated Circuit (ASIC). The sensor is designed and manufactured in accordance with ISO 9001 standards. Typical applications include medical, industrial, commercial, and transportation sectors.
- Plastic dual radial barbed ports, same side
- Dry gases only, no diagnostics
- ±2inH2O differential pressure range
- Analog output
- 10% to 90% of 2^24 counts digital transfer function
- 5V DC supply voltage
- Wide operating temperature range of -40°C to 110°C [-40°F to 230°F]
Product details
| Pressure Type |
Differential |
| Supply Voltage Min |
4.75V |
| Sensor Case / Package |
- |
| Sensor Output Type |
Analogue |
| Pressure Port Type |
Dual Radial Barbed, Same Side |
| Output Interface |
- |
| Operating Temperature Max |
110°C |
| Qualification |
- |
| Operating Pressure Max |
2Inch-H2O |
| Supply Voltage Max |
5.25V |
| No. of Pins |
6Pins |
| Accuracy |
± 0.25% |
| Sensor Mounting |
Surface Mount |
| Operating Temperature Min |
-40°C |
| Product Range |
ABP2 Series |
| SVHC |
No SVHC (07-Nov-2024) |
Other details
| Brand |
HONEYWELL |
| Part Number |
ABP2MRRN002NDAA5XX |
| Quantity |
Each |
| Technical Data Sheet (7.35MB) EN |
View or download |
