Product Overview
MCFRV150-277F is a radial leaded PTC resettable fuse rated for up to 277V AC, designed to hold 1.5A and trip at 3A within approximately 23seconds. It automatically resets after fault clearance, offering Reliable overcurrent protection for line voltage power supplies, appliances, and transformer circuits.
- UL and TUV approved
- Self-resetting protection against overcurrent faults
- Rated for up to 277V AC / 305V max interrupt voltage
- Radial leaded epoxy-coated design ensures compact PCB mounting
- UL-94V-0 flame-retardant housing and tin-plated copper leads
- Performs from –20°C to +85°C for household and industrial environments
Product details
| Product Range |
MP FRV |
| Holding Current |
1.5A |
| Time to Trip |
23s |
| Current Rating Max |
15A |
| Diameter |
23.8mm |
| Thickness |
5.3mm |
| Operating Temperature Min |
-20°C |
| Automotive Qualification Standard |
- |
| Voltage Rating |
277V |
| Trip Current |
3A |
| Fuse Shape |
Round |
| Lead Spacing |
10.2mm |
| Length |
- |
| Height |
28.3mm |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCFRV150-277F |
| Quantity |
Each |
| Technical Data Sheet (293.24KB) EN |
View or download |
| Technical Data Sheet (294.44KB) EN |
View or download |

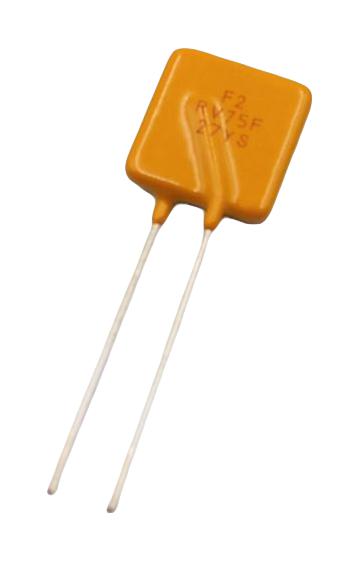

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
