Product Overview
CHEMI-CON ELVA451VSN531MA40S Electrolytic Capacitor, 530 µF, 450 V, ± 20%, Snap-In, 5000 hours @ 105°C
Product details
| Capacitance |
530µF |
| Voltage(AC) |
- |
| Capacitor Terminals |
Snap-In |
| Polarity |
Polar |
| Product Diameter |
35mm |
| Lead Spacing |
10mm |
| Ripple Current |
1.86A |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (07-Nov-2024) |
| Voltage(DC) |
450V |
| Capacitance Tolerance |
± 20% |
| Lifetime @ Temperature |
5000 hours @ 105°C |
| Product Range |
LVA Series |
| Product Height |
40mm |
| ESR |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q200 |
Other details
| Brand |
CHEMI-CON |
| Part Number |
ELVA451VSN531MA40S |
| Quantity |
Each |
| Technical Data Sheet (345.14KB) EN |
View or download |

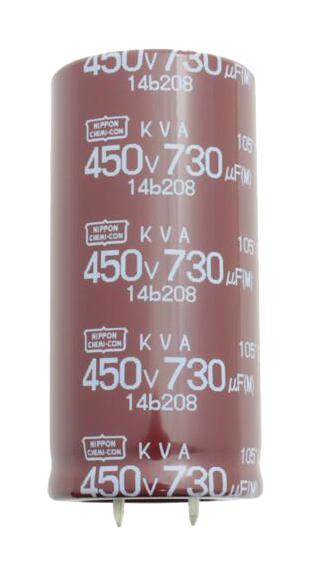

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
