Product Overview
CHEMI-CON EGXF101ELL561MM30S Electrolytic Capacitor, Miniature, 560 µF, 100 V, ± 20%, Radial Leaded, 3000 hours @ 125°C, Polar
Product details
| Capacitance |
560µF |
| Capacitance Tolerance |
± 20% |
| Lifetime @ Temperature |
3000 hours @ 125°C |
| Capacitor Case / Package |
- |
| Product Diameter |
18mm |
| Product Width |
- |
| Product Range |
GXF Series |
| Ripple Current |
2.83A |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (07-Nov-2024) |
| Voltage(DC) |
100V |
| Capacitor Terminals |
Radial Leaded |
| Polarity |
Polar |
| Lead Spacing |
7.5mm |
| Product Length |
- |
| Product Height |
30mm |
| ESR |
0.043ohm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
| Brand |
CHEMI-CON |
| Part Number |
EGXF101ELL561MM30S |
| Quantity |
Each |
| Technical Data Sheet (258.73KB) EN |
View or download |

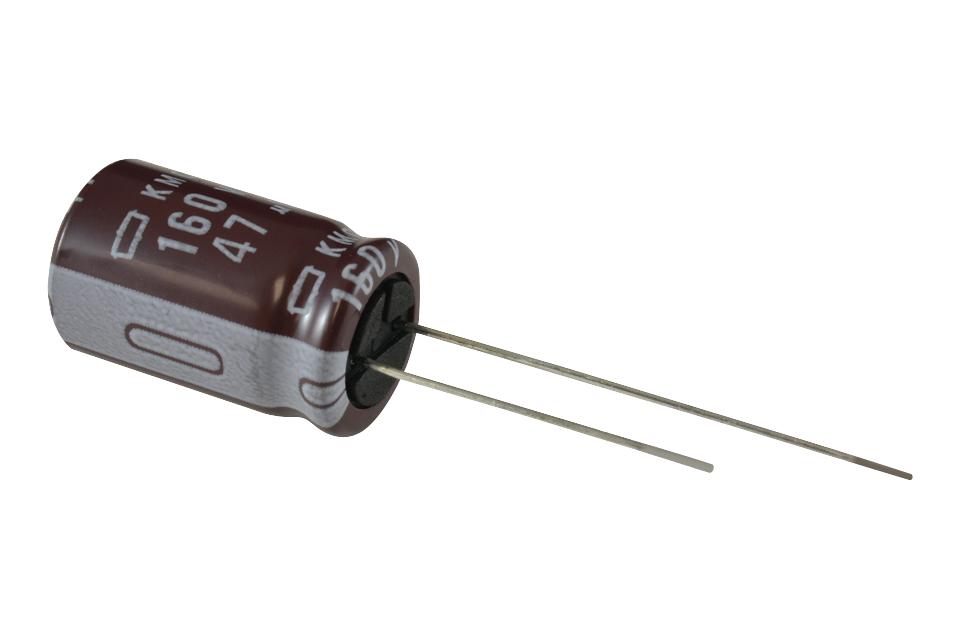

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
