Product Overview

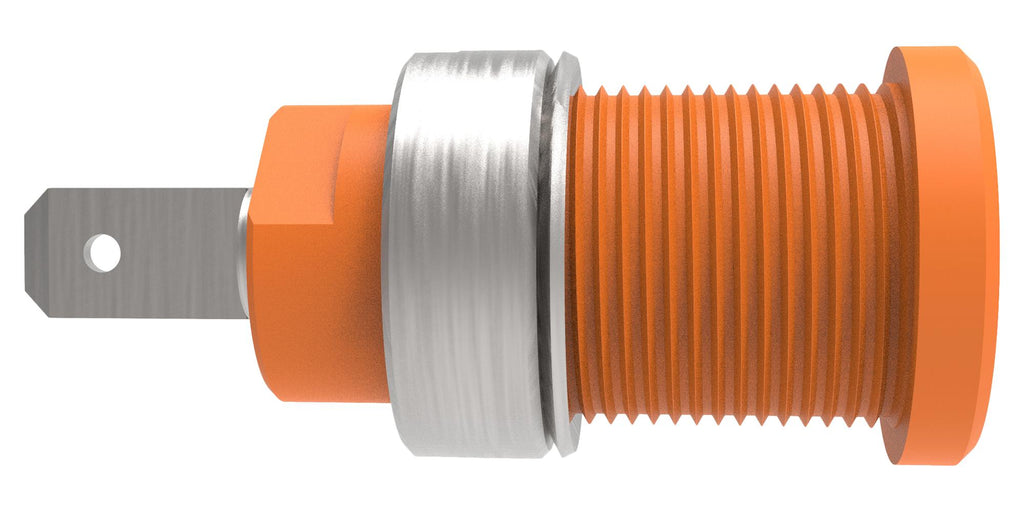

99023279 is a safety threaded socket for fixture in panels up to 6mm thick.
- Slotted nut M12 x 0.75 and spring washer
- Flat tab can be bent up to 90º once
- Nickel-plated contact
- Orange colour PA 6.6 (Polyamide) UL94 - V2 insulation
- 1000 V CAT III rated voltage, 24A rated current
- Operating temperature range from -25°C to +80°C
Product details
| Gender |
Jack |
| Current Rating |
24A |
| Contact Plating |
Nickel Plated Contacts |
| Contact Material |
Brass, Beryllium Copper |
| Product Range |
- |
| Connector Mounting |
Panel Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Orange |
| Contact Termination Type |
Quick Connect |
| SVHC |
No SVHC (07-Nov-2024) |
