Product Overview

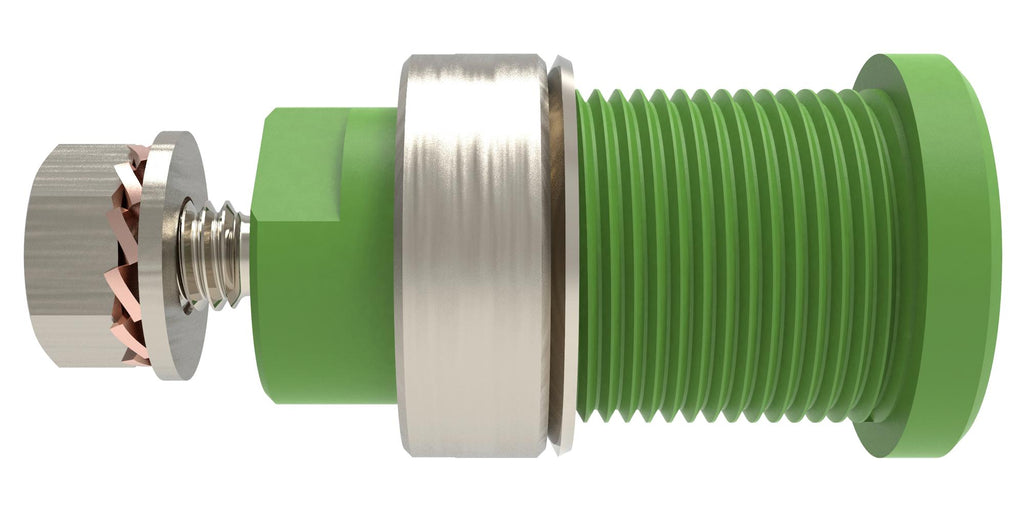

99014389 is a safety threaded socket for fixture in panels up to 6mm thick.
- Nickel-plated contact
- Fixed by slotted nut M12 x 0.75 and spring washer
- Ø 12.2+0.1mm hole
- Green colour PA 6.6 (Polyamide) UL94 - V2
- 1000V CAT III rated voltage
- 32A rated current
- Operating temperature range from -25°C to +80°C
Product details
| Gender |
Jack |
| Current Rating |
32A |
| Contact Plating |
Nickel Plated Contacts |
| Contact Material |
Brass, Beryllium Copper |
| Product Range |
- |
| Connector Mounting |
Panel Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Green |
| Contact Termination Type |
Screw |
| SVHC |
No SVHC (07-Nov-2024) |
