Product Overview

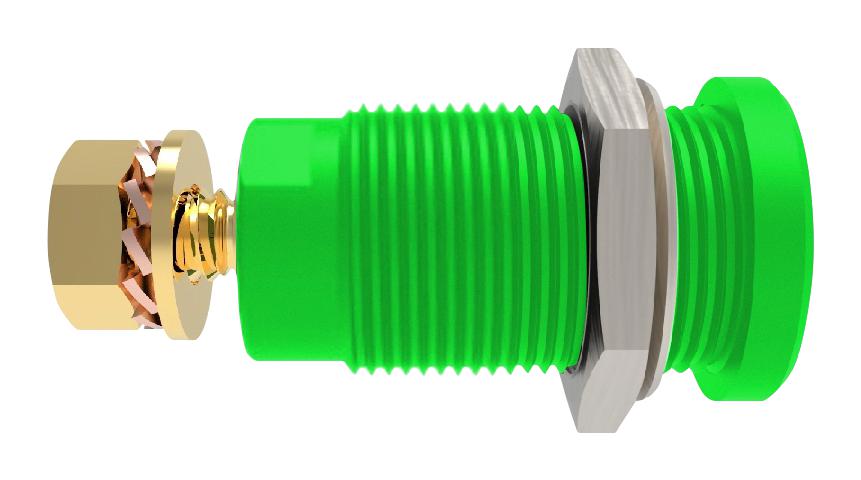

99023256 is a safety threaded socket for fixture into panels up to 3mm thick.
- Gold-plated contact
- Fixed by hexagon nut M12 x 0.75 and spring washer
- Ø 12.2+0.1 mm hole
- Green-yellow colour PA 6.6 (polyamide) UL94 - V2 insulation
- 1500V DC 1000V CAT III 600V CAT IV rated voltage
- 32A rated current
- Operating temperature range from -25°C to +80°C
Product details
| Gender |
Jack |
| Current Rating |
32A |
| Contact Plating |
Gold Plated Contacts |
| Contact Material |
Brass, Beryllium Copper |
| Product Range |
- |
| Connector Mounting |
Panel Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Green, Yellow |
| Contact Termination Type |
Screw |
| SVHC |
No SVHC (07-Nov-2024) |
