Product Overview

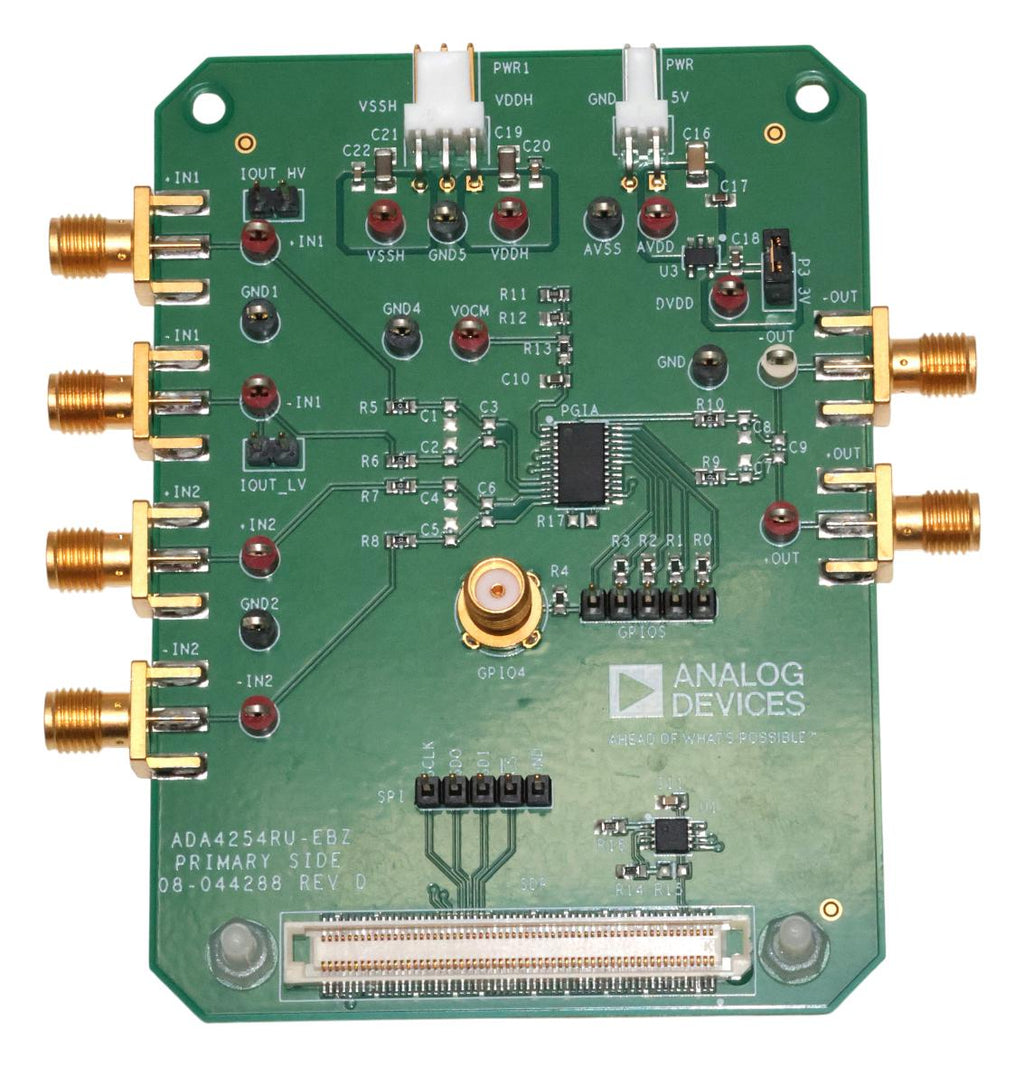

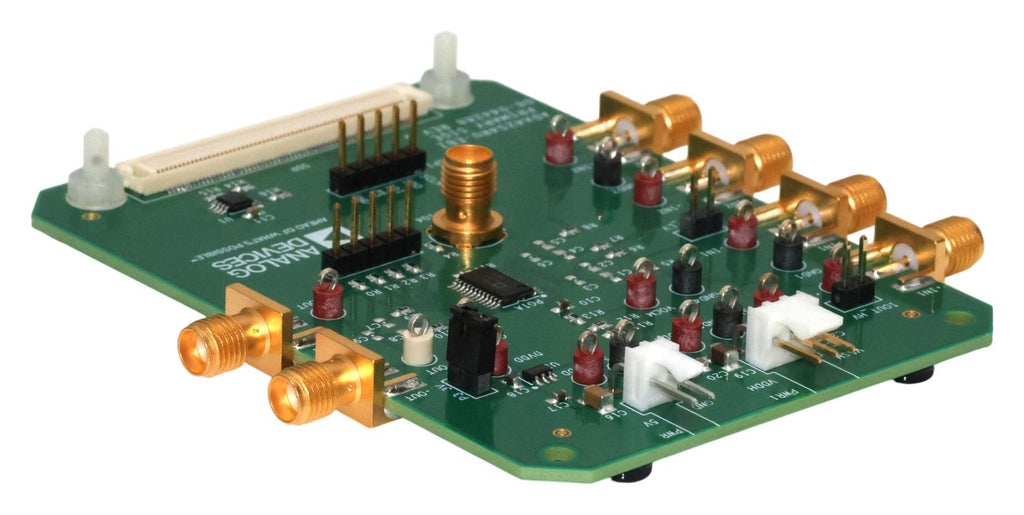

ADA4254RU-EBZ evaluation board is designed to help users evaluate the ADA4254, which is offered in a 24-lead thin shrink small outline package (TSSOP) or a 28-lead lead frame chip scale package (LFCSP). The ADA4254RU-EBZ evaluation board is a 4-layer printed circuit board (PCB). The evaluation board accepts Subminiature Version A (SMA) edge mounted connectors on the inputs and outputs to efficiently connect to test equipment or other circuitry. The ADA4254RU-EBZ evaluation board requires the three supply domains such as a high voltage supply domain consisting of the supply pins, VDDH and VSSH, which are typically +28 V and −28 V respectively/ the analogue output supply domain, AVDD, typically 5V/the digital supply domain, DVDD, typically 3.3V.
- Enables quick breadboarding and prototyping
- Edge mounted SMA connector provisions
- Easy connection to test equipment and other circuits
Product details
| Silicon Manufacturer |
Analog Devices |
| Kit Application Type |
Amplifier |
| Kit Contents |
Evaluation Board ADA4254 |
| SVHC |
No SVHC (04-Feb-2026) |
| Silicon Core Number |
ADA4254 |
| Application Sub Type |
Instrumentation Amplifier |
| Product Range |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
ADA4254RU-EBZ |
| Quantity |
Each |
| Technical Data Sheet (93.00B) EN |
View or download |
