Product Overview

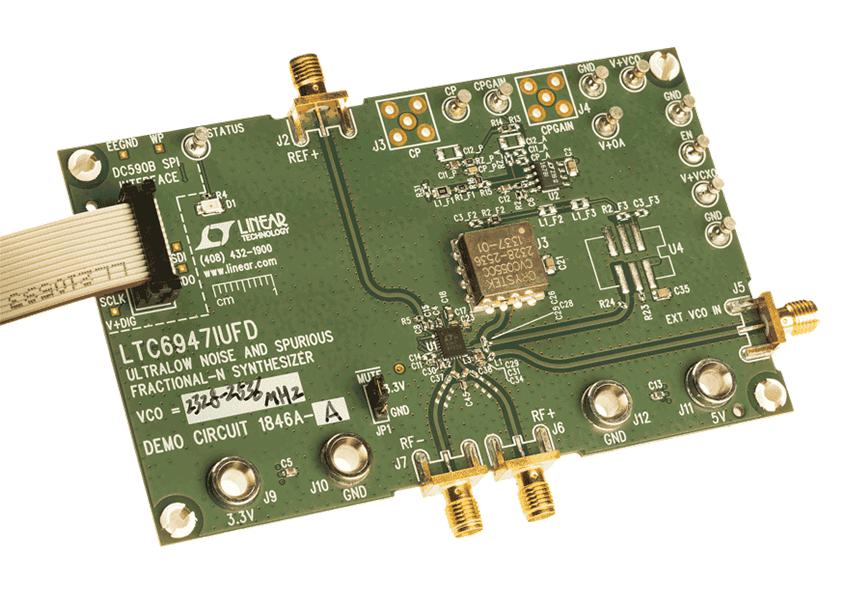

DC1846A-A demonstration circuit features the LTC®6947, an ultralow noise and spurious fractional-N synthesizer. DC1846A-A provides 50 ohm SMA connectors for the reference frequency (REF+) and the two single-ended RF outputs (RF+ and RF–). A DC590 USB serial controller board is used for SPI communication with the LTC6947, controlled by the supplied FracNWizard™ software.
- Easy to set up to evaluate the performance of the LTC6947
Product details
| Silicon Manufacturer |
Analog Devices |
| Kit Application Type |
Clock & Timing |
| Kit Contents |
Demo Board LTC6947 |
| SVHC |
No SVHC (04-Feb-2026) |
| Silicon Core Number |
LTC6947 |
| Application Sub Type |
Fractional-N Synthesizer |
| Product Range |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
DC1846A-A |
| Quantity |
Each |
| Technical Data Sheet (80.00B) EN |
View or download |
