Product Overview

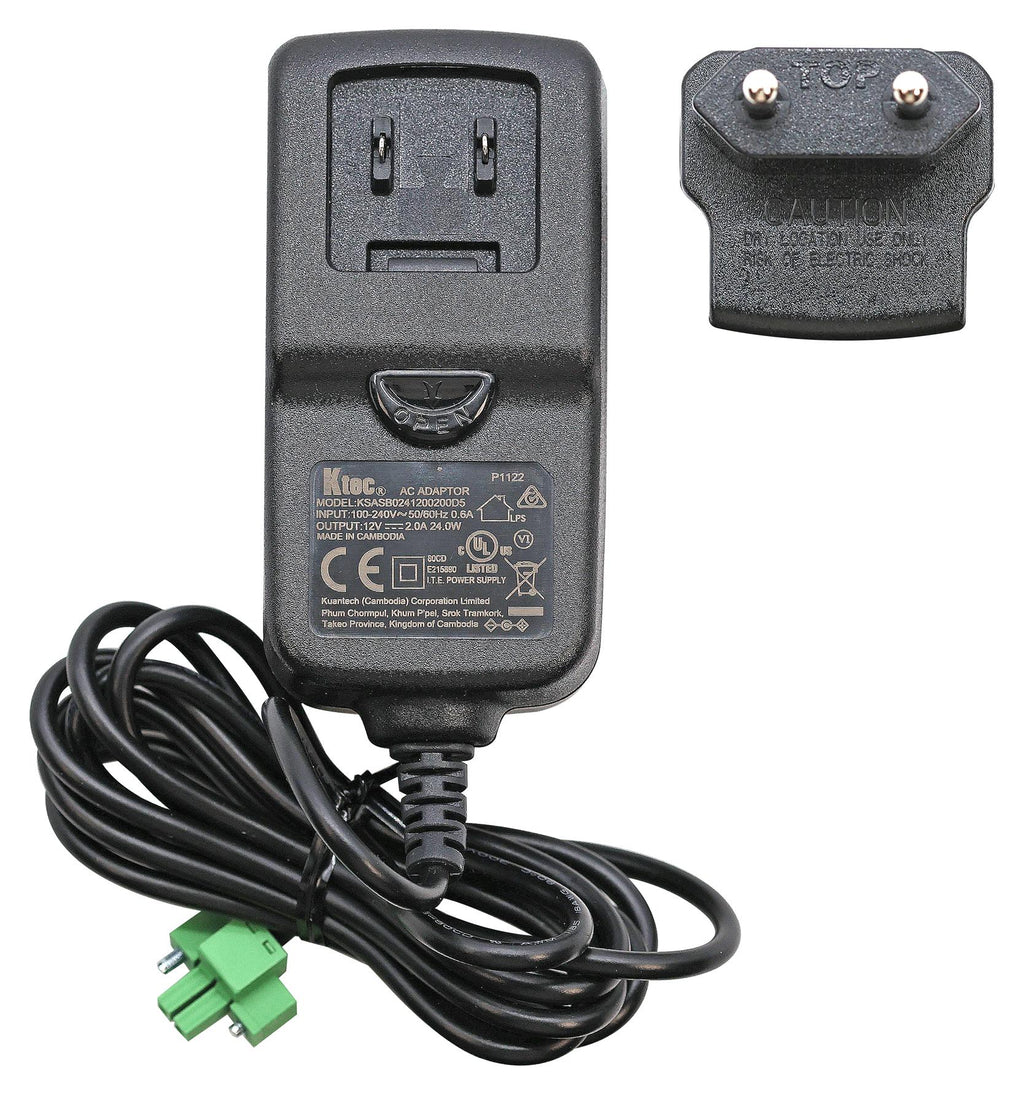

ED-PSU1202-EU-3.5PL is an ED-PSU1202 series, single-phase, 12V, 2A output power supply. Support Raspberry Pi Compute Module IO Board and all of EDATEC’s 12V input computers.
- 100-240VAC 50/60Hz input and 50/60Hz±3Hz rated input frequency
- 29.1W max input power, 0.075W max power consumption (no-loading)
- Over-voltage, short-circuit & overcurrent protection
- 24Wrating output power
- 0.6A max rated input current
- Input current (no-loading) is lesser than or equal to 25mA
- ±5% line regulation
- 150mVp-p ripple and noise
- Operating temperature range from 0 to 40°C
- Europe plug and 3.5mm pitch Phoenix with lock
Product details
| Input Voltage Range |
90V AC to 264V AC |
| Output Current |
2A |
| Plug Type |
EU |
| SVHC |
No SVHC (07-Nov-2024) |
| Output Voltage |
12VDC |
| For Use With |
Raspberry Pi Compute Module IO Boards, EDATEC 12V Input Computers |
| Product Range |
ED-PSU1202 Series |
Other details
| Brand |
EDATEC |
| Part Number |
ED-PSU1202-EU-3.5PL |
| Quantity |
Each |
| Technical Data Sheet (65.00B) EN |
View or download |
