Product Overview
Notes
This product comes with 5-year warranty.
Product details
| Pressure Type |
Gauge |
| Operating Pressure Min |
-1bar |
| Pressure Port Size |
1/2", 1/4" |
| Supply Voltage Min |
10VDC |
| Media Type |
Gas, Liquid |
| Sensor Output Type |
Analogue |
| Operating Temperature Min |
-40°C |
| Product Range |

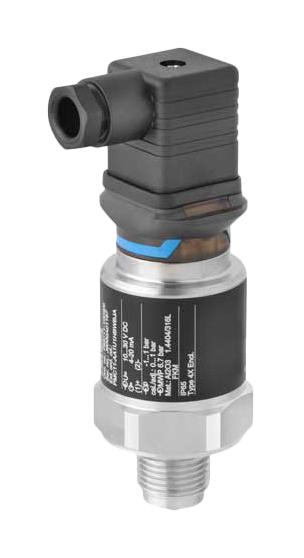

Cerabar PMC21 Series |
| Pressure Port Type |
NPT Male, NPT Female |
| Operating Pressure Max |
40bar |
| Transducer Connection / Termination |
1/2" NPT Valve Plug |
| Supply Voltage Max |
30VDC |
| Output Interface |
4-20mA |
| Housing Material |
316L Stainless Steel |
| Operating Temperature Max |
85°C |
Other details
| Brand |
ENDRESS+HAUSER |
| Part Number |
PMC21-AA1V1SFVXJA |
| Quantity |
Each |
| Enhanced Product Overview (801.41KB) EN |
View or download |
| Technical Data Sheet (1.11MB) EN |
View or download |
