Product Overview

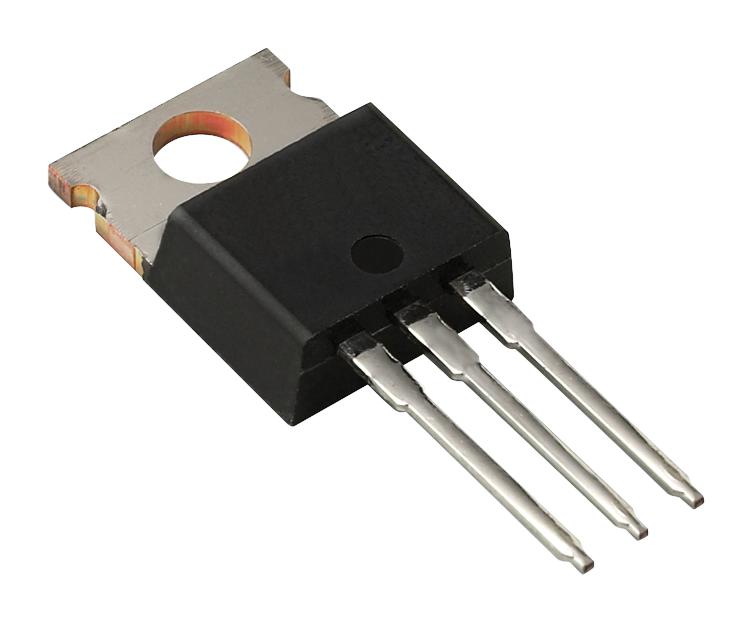

INFINEON IPP023N10N5XKSA1 Power MOSFET, N Channel, 100 V, 120 A, 2300 µohm, TO-220, Through Hole
Product details
| Channel Type |
N Channel |
| Continuous Drain Current Id |
120A |
| Transistor Case Style |
TO-220 |
| Rds(on) Test Voltage |
10V |
| Power Dissipation |
375W |
| Operating Temperature Max |
175°C |
| Qualification |
- |
| Drain Source Voltage Vds |
100V |
| Drain Source On State Resistance |
2300µohm |
| Transistor Mounting |
Through Hole |
| Gate Source Threshold Voltage Max |
3.8V |
| No. of Pins |
3Pins |
| Product Range |
OptiMOS 5 Series |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
INFINEON |
| Part Number |
IPP023N10N5XKSA1 |
| Quantity |
Each |
| Technical Data Sheet (1.65MB) EN |
View or download |
