Product Overview

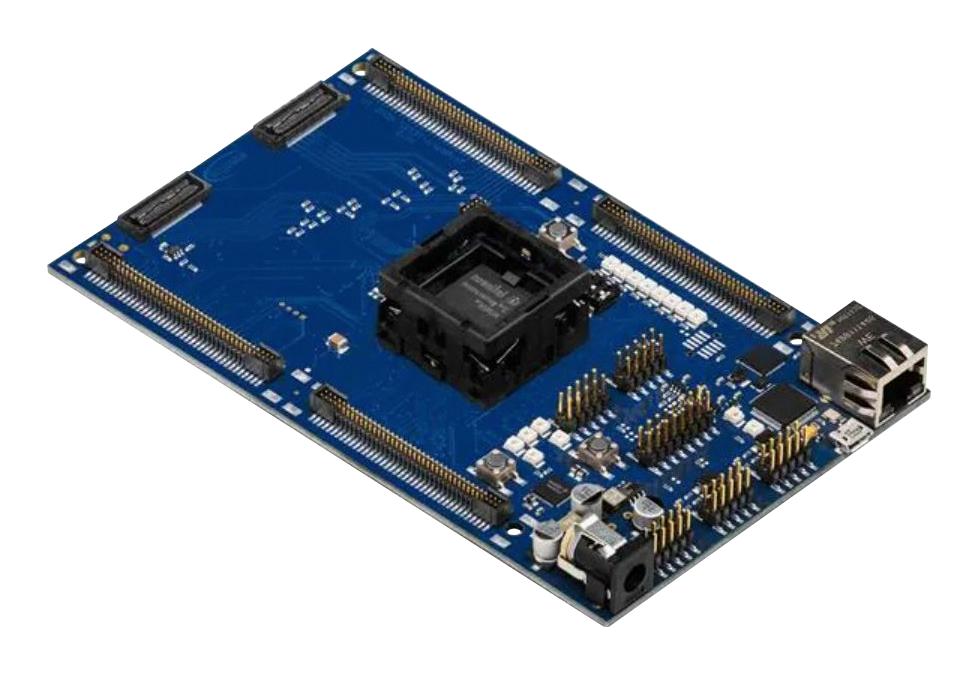

KITA2GTC3675VTRBTOBO1 is a general purpose AURIX™ TC367 evaluation board. Customers can quickly start developing, evaluating and testing their software. The TC367DP device is mounted on a socket so that it can be easily changed, making it particularly suitable for early project development.
- AURIX™ TC367 in LFBGA-292 package
- FlexRay™ transceivers, high speed CAN transceivers (CAN-FD capable)
- USB to UART bridge – Ethernet gigabit PHY, serial EEPROM
- LIN transceiver, crystal 20MHz (default) or external clock
- USB miniWiggler JDS for easy debugging, 8 low power status LEDs
- 8-DIP switches for configuration, access to all pins of controller, 100mm x 160mm (EURO-Board)
- LIN-Transceiver TLE 7259-3GE, USB to UART bridge FT2232HL (FTDI)
- Integrated 10/100/1000M Ethernet precision transceiver RTL8211FI-CG (Realtek)
- 8 general purpose LED and 2K I²C serial EEPROM with EUI-48™ Node Identity (MICROCHIP)
- Reset switch Enable switch Generic switch 4-pin Dip switch
Product details
| Silicon Manufacturer |
Infineon |
| Silicon Family Name |
AURIX |
| Core Sub-Architecture |
- |
| Kit Contents |
Evaluation Board TC367 |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Bits |
32bit |
| Core Architecture |
TriCore |
| Silicon Core Number |
TC367 |
| Product Range |
- |
Other details
| Brand |
INFINEON |
| Part Number |
KITA2GTC3675VTRBTOBO1 |
| Quantity |
Each |
| Technical Data Sheet (1.24MB) EN |
View or download |
